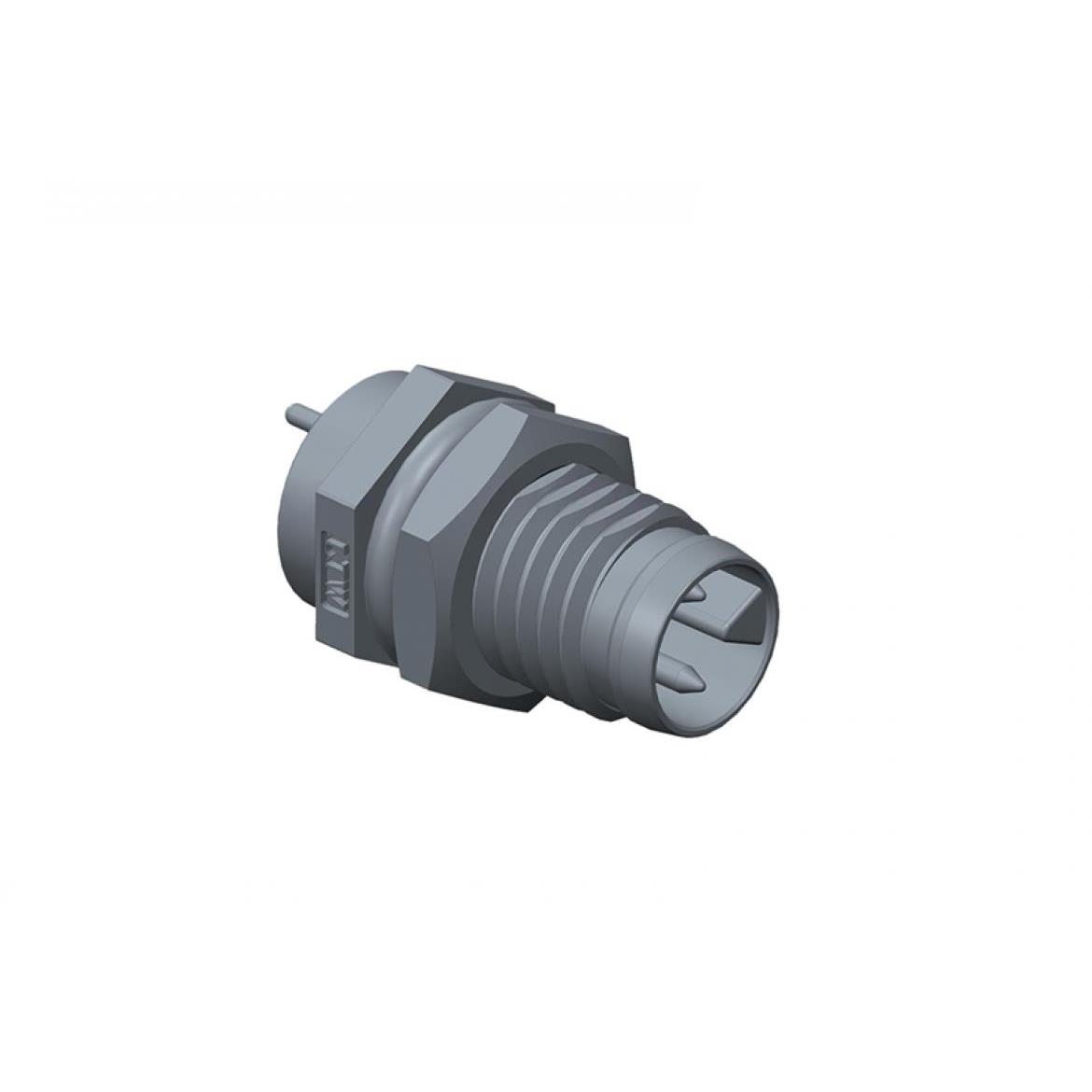

8A-05PMMS-SF7001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 1.5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEP

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 1.5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEP

Technical Specifications

Parameters and characteristics for this part

Specification	8A-05PMMS-SF7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-5
Shielding	Shielded
Voltage Rating	30 VDC

Part	Contact Material	Mounting Feature	Shell Size - Insert	Shielding	Material Flammability Rating	Connector Type	Contact Finish - Mating	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material	Orientation	Primary Material	Ingress Protection	Shell Finish	Insert Material
Amphenol LTW 8A-05PMMS-SF7001	Copper Alloy	Bulkhead - Front Side Nut	M8-5	Shielded	UL94 V-0	Male Pins Receptacle	Gold	30 VDC	1.5 A	-40 °C	105 ░C	Silver	Zinc Alloy	Keyed	Metal	IP67 - Dust Tight Waterproof	Nickel	Polyamide (PA) Nylon Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
