GTM410602524FWIM(RE)

Active

GlobTek, Inc.

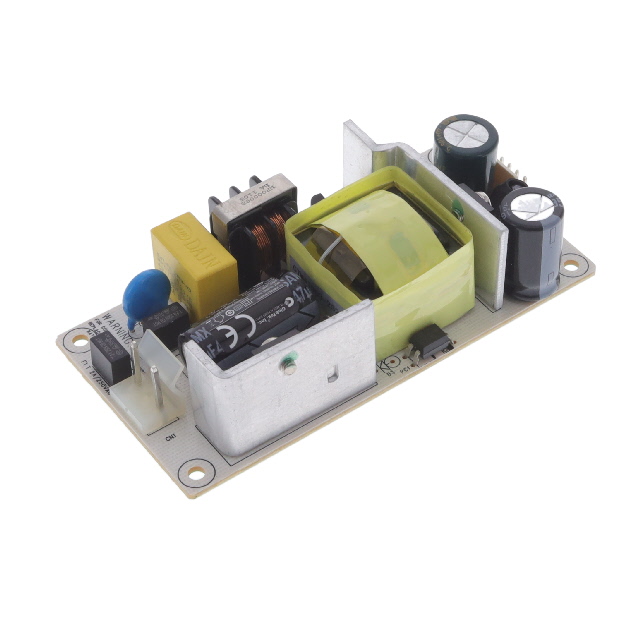

AC/DC CONVERTER 24V 25W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC CONVERTER 24V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	GTM410602524FWIM(RE)

Applications	ITE (Commercial), Medical
Approval Agency	CB, FCC, CE, cURus, cUR, GOST-R, NEMKO, UKRSepro, VCCI
Current - Output 1	1.04 A
Efficiency	80 %
Features	Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	25 W
Size / Dimension [x]	98 mm
Size / Dimension [x]	3.86 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 "
Size / Dimension [z]	28 mm
Size / Dimension [z]	1.1 in
Standard Number	60950-1, 60601-1
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Minimum Load Required	Current - Output 1	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Efficiency	Applications	Voltage - Output 1
GlobTek, Inc. GTM410602524FWIM(RE)	Adjustable Output	40 °C	0 °C	1	Open Frame	CB CE cUR cURus FCC GOST-R NEMKO UKRSepro VCCI	50 mm	98 mm	28 mm	3.86 in	1.97 "	1.1 in	25 W		1.04 A	Chassis Mount	240 VAC	100 VAC	60601-1 60950-1	80 %	ITE (Commercial) Medical	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.38

General part information

Open Frame AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
