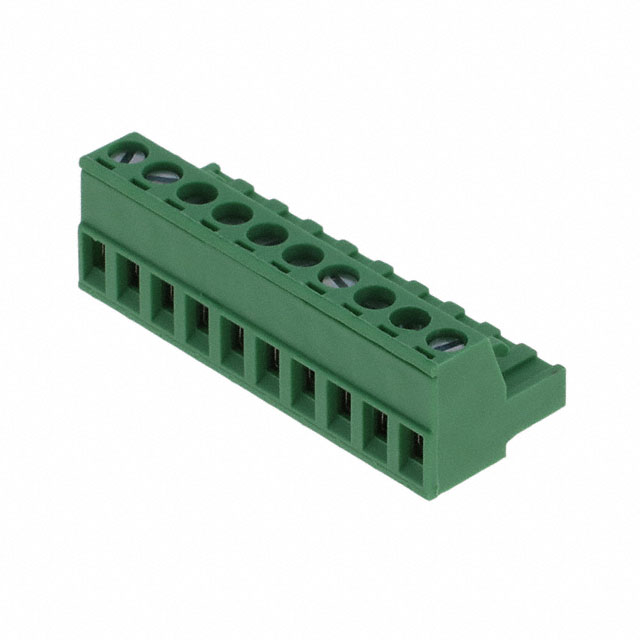

SH10-5,08

Active

Altech Corporation

TERM BLOCK PLUG 10POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SH10-5,08

Active

Altech Corporation

TERM BLOCK PLUG 10POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SH10-5,08

Color	Green
Contact Material	Brass
Contact Mating Finish	Nickel
Current - IEC	16 A
Current - UL	12 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.61 in
Insulation Height	15.49 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	10
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - IEC	450 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	7.5 mm

SH10 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Features	Material Flammability Rating	Wire Strip Length	Housing Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Screw Size	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Voltage - IEC	Torque - Screw	Torque - Screw	Contact Material	Mounting Type	Color	Current - UL	Positions Per Level	Contact Mating Finish	Voltage - UL	Type	Number of Positions	Current - IEC	Wire Gauge or Range - mm˛
TE Connectivity Raychem Cable Protection SH10-3,81
Altech Corporation SH10-3,81
Altech Corporation SH10-10,16
Altech Corporation SH10-3,50
Altech Corporation SH10-5,08-K
TE Connectivity Raychem Cable Protection SH10-3,50-K	-30 ░C	105 ░C	1	Mating Flange	UL94 V-0	8 mm	Polyamide (PA) Nylon	1.5 mm˛	0.25 mm˛	14 AWG	30 AWG	Screw - Rising Cage Clamp	M2	3.5 mm	0.138 in	0.437 in	11.1 mm	160 V	2.2 Lb-In	0.25 Nm	Copper Alloy	Free Hanging (In-Line)	Green	8 A	10	Nickel	300 V	Plug Female Sockets	10	8 A
Altech Corporation SH10-3,50-K	-30 ░C	105 ░C	1	Mating Flange	UL94 V-0	8 mm	Polyamide (PA) Nylon	1.5 mm˛	0.25 mm˛	14 AWG	30 AWG	Screw - Rising Cage Clamp	M2	3.5 mm	0.138 in	0.437 in	11.1 mm	160 V	2.2 Lb-In	0.25 Nm	Copper Alloy	Free Hanging (In-Line)	Green	8 A	10	Nickel	300 V	Plug Female Sockets	10	8 A
TE Connectivity Raychem Cable Protection SH10-10,00
Altech Corporation SH10-10,00
Altech Corporation SH10-5,08			1		UL94 V-0	7.5 mm	Polyamide (PA) Nylon			14 AWG	30 AWG	Screw - Rising Cage Clamp	M3	5.08 mm	0.2 in	0.61 in	15.49 mm	450 V	4.4 Lb-In	0.5 Nm	Brass	Free Hanging (In-Line)	Green	12 A	10	Nickel	300 V	Plug Female Sockets	10	16 A	2.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.74
		10	$ 3.38
		25	$ 3.11
		50	$ 3.04

Description

General part information

SH10 Series

10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources
