M2151-4007-S-12

Active

RAF Electronic Hardware

6MM HEX X 16MM X M4 THD

Search across all available documentation for this part.

Active

RAF Electronic Hardware

6MM HEX X 16MM X M4 THD

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Color	Gender	Screw, Thread Size	Length - Overall [x]	Length - Overall [x]	Threaded/Unthreaded	Between Board Height [z]	Between Board Height [z]	Material	Plating	Length - Overall	Screw, Thread Size
RAF Electronic Hardware M2151-3005-AL-7	0.236 in	6 mm	Hex Standoff	Clear	Female Male	M3x0.5	20.76 mm	0.817 in	Threaded	16 mm	0.63 in	Aluminum	Iridite
RAF Electronic Hardware M2151-3005-B-12	0.236 in	5.99 mm	Hex Standoff		Female Male	M3x0.5		0.817 in	Threaded	16 mm	0.63 in	Brass	Zinc	20.75 mm
RAF Electronic Hardware M2151-3506-AL	0.236 in	6 mm	Hex Standoff		Female Male		22.53 mm	0.887 "	Threaded	16 mm	0.63 in	Aluminum			0.6 mm 3.5 mm
RAF Electronic Hardware M2151-4007-S-12	0.236 in	6 mm	Hex Standoff	Clear	Female Male	M4x0.7	25.53 mm	1.005 in	Threaded	16 mm	0.63 in		Chromate Zinc
RAF Electronic Hardware M2151-3005-N	0.236 in	5.99 mm	Hex Standoff		Female Male	M3x0.5		0.817 in	Threaded	16 mm	0.63 in	Nylon		20.75 mm
RAF Electronic Hardware M2151-4007-B-12	0.236 in	6 mm	Hex Standoff	Clear	Female Male	M4x0.7	25.53 mm	1.005 in	Threaded	16 mm	0.63 in	Brass	Chromate Zinc

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

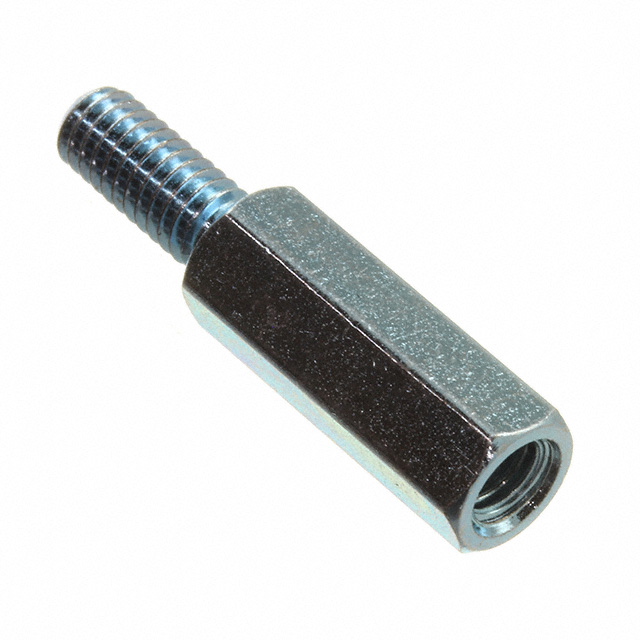

Hex Standoff Threaded M4x0.7 Steel 0.630" (16.00mm) Clear

Technical documentation and resources

No documents available
