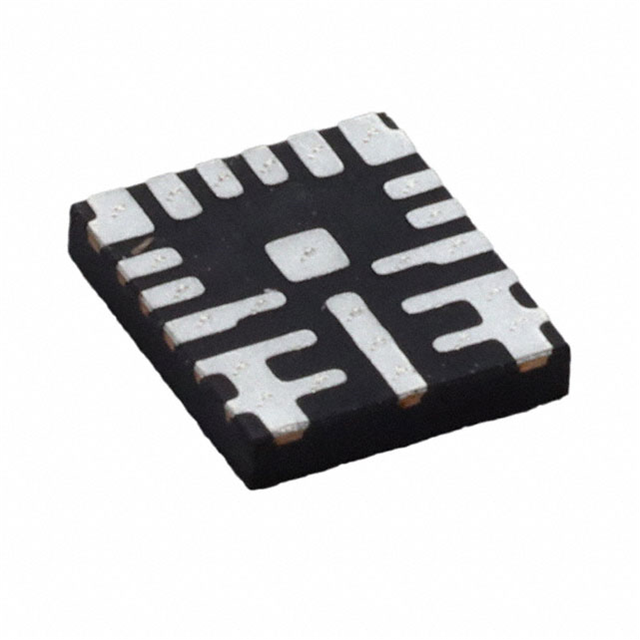

MAX20499BFOL/VY+
ActiveAUTOMOTIVE SINGLE 8A/12A STEP-DOWN CONVERTER FAMILY
Deep-Dive with AI
Search across all available documentation for this part.
MAX20499BFOL/VY+
ActiveAUTOMOTIVE SINGLE 8A/12A STEP-DOWN CONVERTER FAMILY
Technical Specifications
Parameters and characteristics for this part
| Specification | MAX20499BFOL/VY+ |
|---|---|
| Current - Output | 12 A |
| Frequency - Switching | 2.2 MHz, 1.1 MHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Programmable |
| Package / Case | 17-PowerWFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 17-FC2QFN |
| Supplier Device Package [x] | 3.5 |
| Supplier Device Package [y] | 3.75 |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 3 V |
| Voltage - Output (Max) [Max] | 1.275 V |
| Voltage - Output (Min/Fixed) [Min] | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.64 | |
| 10 | $ 4.50 | |||
| 25 | $ 3.95 | |||
| 80 | $ 3.41 | |||
| 230 | $ 3.05 | |||
| 440 | $ 2.87 | |||
| 945 | $ 2.70 | |||
| 2400 | $ 2.53 | |||
Description
General part information
MAX20499 Series
The MAX20499 is a family of high-efficiency, synchronous step-down converters that operate with a 3.0V to 5.5V input voltage range and supply a 0.5V to 1.275V output voltage range. The wide input/output voltage range and the ability to provide up to 12A peak output current make this device family ideal for on-board point-of-load and post-regulation applications. The MAX20499 achieves ±1.5% output error over load, line, and temperature ranges.The MAX20499 features a 2.2MHz fixed-frequency PWM mode for better noise immunity and load-transient response. The 2.2MHz frequency operation allows for the use of all ceramic capacitors and minimizes external components. The spread-spectrum frequency modulation option minimizes radiated electromagnetic emissions. Integrated low RDS(ON)switches improve efficiency at heavy loads and make layout simpler than discrete solutions.The MAX20499 is offered with factory-preset output voltage. See theOrdering Informationtable for options. The I2C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft-start, along with overcurrent and overtemperature protections.APPLICATIONSAutomotive Entertainment SystemsSoC Core Power
