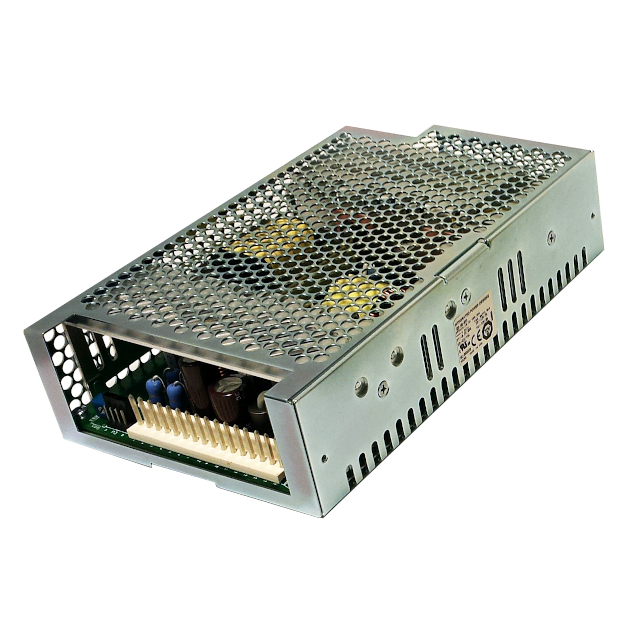

1010737CHCO
ActiveIntegrated Power Designs
DC/DC CONVERTER 12V 185W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1010737CHCO
ActiveIntegrated Power Designs
DC/DC CONVERTER 12V 185W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010737CHCO |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output (Max) [Max] | 15.4 A |
| Efficiency | 84 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 185 W |
| Size / Dimension [x] | 7.23 in |
| Size / Dimension [x] | 183.6 mm |
| Size / Dimension [y] | 110.7 mm |
| Size / Dimension [y] | 4.36 in |
| Size / Dimension [z] | 44.2 mm |
| Size / Dimension [z] | 1.74 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 212.74 | |
| 25 | $ 205.52 | |||
| 100 | $ 200.35 | |||
Description
General part information
1010737 Series
Enclosed DC DC Converter 1 Output 12V 15.4A 72V Input
