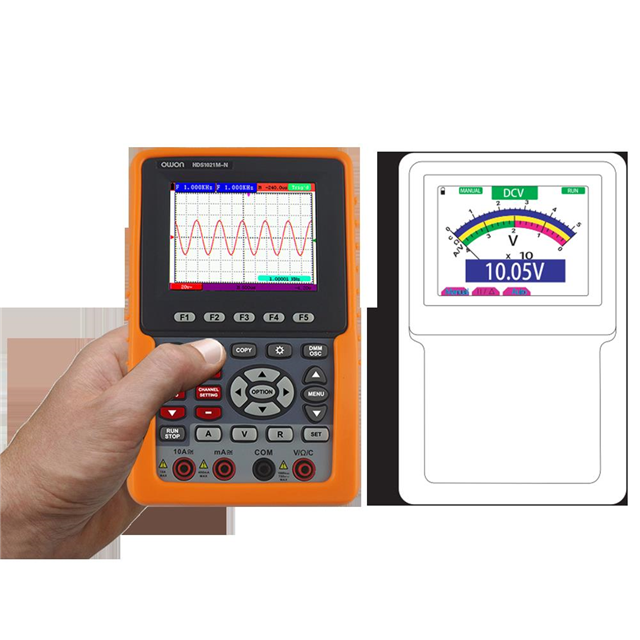

HDS2061M-N

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 60MHZ 1 CH 500MS/S

Search across all available documentation for this part.

Active

Owon Technology Lilliput Electronics (USA) Inc

O-SCOPE 60MHZ 1 CH 500MS/S

Technical Specifications

Parameters and characteristics for this part

Specification	HDS2061M-N

Bandwidth	60 MHz
Channels	1
Display Type	LCD - Color
Includes	Adapter, Probe, Manual, USB Cable, Test Lead, Power Cord
Input Impedance	1 M, 15 pF
Interface	USB, RS232
Memory Size	24 kpts
Probe Type	Passive 10:1 (1)
Rise Time (Typ)	5.8 ns
Sampling Rate (Per Second)	500 M
Type	Handheld
Voltage - Input (Max) [Max]	400 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	100 VAC

Part	Memory Size	Type	Bandwidth	Sampling Rate (Per Second)	Rise Time (Typ)	Probe Type	Includes	Channels	Display Type	Voltage - Input (Max) [Max]	Input Impedance	Voltage - Supply [Min]	Voltage - Supply [Max]	Interface
Owon Technology Lilliput Electronics (USA) Inc HDS2061M-N	24 kpts	Handheld	60 MHz	500 M	5.8 ns	Passive 10:1 (1)	Adapter Manual Power Cord Probe Test Lead USB Cable	1	LCD - Color	400 V	1 M 15 pF	100 VAC	240 VAC	RS232 USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 379.00

General part information

60 MHz Handheld Oscilloscopes RS232, USB Interface LCD - Color Display 1 Channel CAT II 400V Record, Playback

Technical documentation and resources

No documents available
