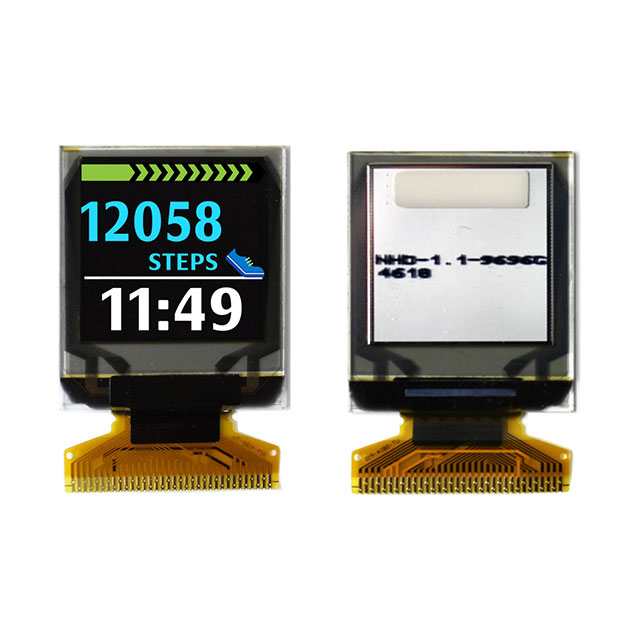

NHD-1.1-9696G
ObsoleteNewhaven Display Intl
1.1" FULL COLOR OLED GLASS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NHD-1.1-9696G
ObsoleteNewhaven Display Intl
1.1" FULL COLOR OLED GLASS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-1.1-9696G |
|---|---|
| Controller Type | SEPS114A |
| Diagonal Screen Size | 1.1 in |
| Diagonal Screen Size | 27.94 mm |
| Display Mode | Transflective |
| Display Type | OLED |
| Dot Pixels [x] | 96 |
| Dot Pixels [y] | 96 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel, Serial |
| Viewing Area [x] | 21.85 mm |
| Viewing Area [y] | 21.85 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NHD-1.1 Series
Graphic LCD Display Module Transflective Red, Green, Blue (RGB) OLED Parallel, Serial 1.1" (27.94mm) 96 x 96
