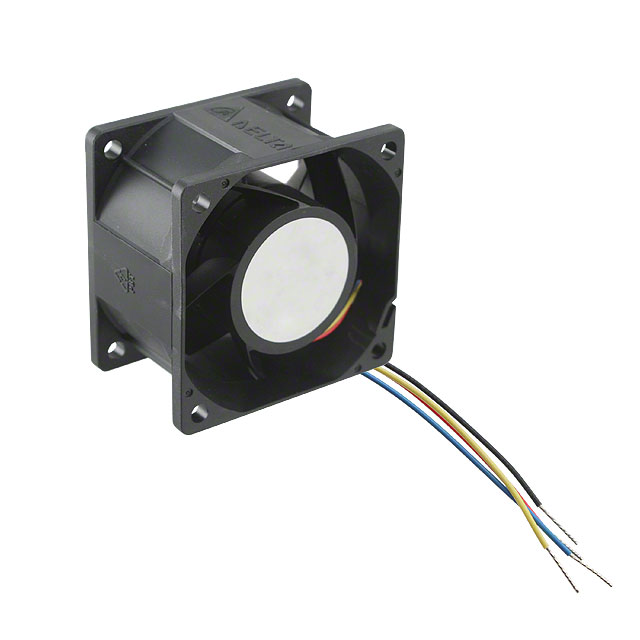

PFC0612DE-F00

Active

Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 60X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	PFC0612DE-F00

Air Flow	67.8 CFM
Air Flow	1.9 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.4 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	61.5 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	16.8 W
RPM	12000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	2.129 in H2O
Static Pressure	530.3 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	130.18 g
Weight	0.287 lb
Width [y]	38 mm

Part	Current Rating (Amps)	Bearing Type	Power (Watts)	Noise	Termination	Voltage - Rated	Air Flow	Air Flow	Width [y]	Approval Agency	Material - Blade	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Material - Frame	Weight	Weight	RPM
Delta Electronics PFC0612DE-F00	1.4 A	Ball	16.8 W	61.5 dB(A)	4 Wire Leads	12 VDC	67.8 CFM	1.9 m³/min	38 mm	CE CSA UL VDE	Plastic	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	Locked Rotor Protection PWM Control Speed Sensor (Tach)	60 mm	60 mm	2.129 in H2O	530.3 Pa	13.2 VDC	10.8 VDC	50000 Hrs	Plastic	130.18 g	0.287 lb	12000 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 67.8 CFM (1.90m³/min) 4 Wire Leads
