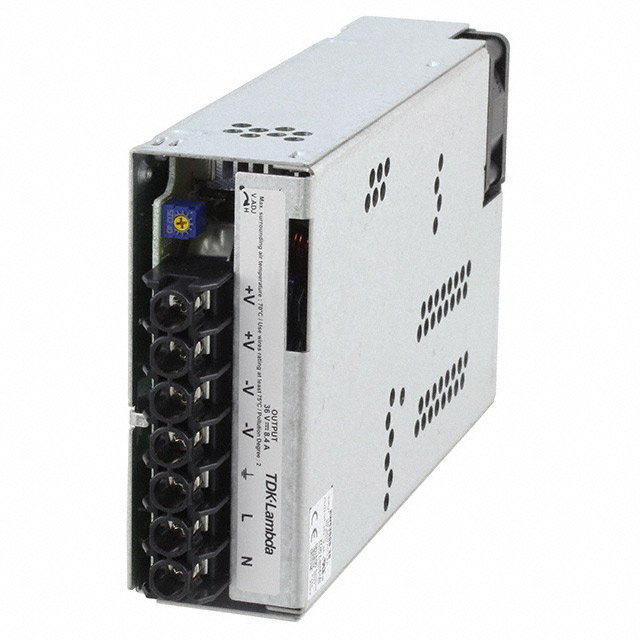

RWS300B-36

Active

TDK-LAMBDA

AC/DC CONVERTER 36V 300W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RWS300B-36

Active

TDK-LAMBDA

AC/DC CONVERTER 36V 300W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RWS300B-36

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	8.4 A
Efficiency	88 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	300 W
Size / Dimension [x]	6.7 in
Size / Dimension [x]	170 mm
Size / Dimension [y]	102 mm
Size / Dimension [y]	4.02 in
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	36 V

RWS300 Series

Part	Type	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Applications	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Power (Watts)
TDK-LAMBDA RWS300B-48/R	Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	88 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	-20 °C	70 °C	6.3 A	1	48 V	3000 V	300 W
TDK-LAMBDA RWS300B-24/CO2	Conformal Coated Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	88 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	12.5 A	1	24 V	3000 V	300 W
TDK-LAMBDA RWS300B-5/CO2	Conformal Coated Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	78 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	50 A	1	5 V	3000 V	300 W
TDK-LAMBDA RWS300B-36/CO2	Conformal Coated Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	88 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	8.4 A	1	36 V	3000 V	300 W
TDK-LAMBDA RWS300B-48	Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	88 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	6.3 A	1	48 V	3000 V	300 W
TDK-LAMBDA RWS300B-36	Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	88 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	8.4 A	1	36 V	3000 V	300 W
TDK-LAMBDA RWS300B-12/CO2	Conformal Coated Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in		85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Universal Input	-20 °C	70 °C	25 A	1	12 V	3000 V	300 W
TDK-LAMBDA RWS300B-5/R	Enclosed	Chassis Mount	102 mm	41 mm	6.7 in	1.61 "	170 mm	4.02 in	78 %	85 VAC	265 VAC	CE	ITE (Commercial)	Adjustable Output DC Input Capable Load Sharing Remote On/Off Universal Input	-20 °C	70 °C	50 A	1	5 V	3000 V	300 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 96.92

Description

General part information

RWS300 Series

Enclosed AC DC Converters 1 Output 36V 85 ~ 265 VAC Input
