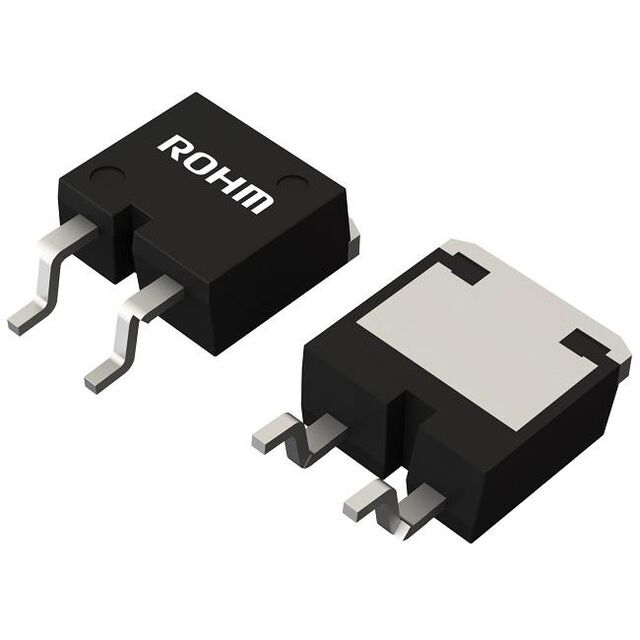

SCS230ANHRTRL
ActiveRohm Semiconductor
SILICON CARBIDE SCHOTTKY DIODE, SINGLE DUAL CATHODE, 650 V, 30 A, 38 NC, TO-263
Deep-Dive with AI
Search across all available documentation for this part.
SCS230ANHRTRL
ActiveRohm Semiconductor
SILICON CARBIDE SCHOTTKY DIODE, SINGLE DUAL CATHODE, 650 V, 30 A, 38 NC, TO-263
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCS230ANHRTRL |
|---|---|
| Capacitance @ Vr, F | 1090 pF |
| Current - Average Rectified (Io) | 30 A |
| Current - Reverse Leakage @ Vr | 600 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 175 °C |
| Package / Case | D2PAK (2 Leads + Tab), TO-263AB, TO-263-3 |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Supplier Device Package | LPDS |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 650 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.92 | |
| 10 | $ 6.89 | |||
| 25 | $ 6.11 | |||
| 100 | $ 5.23 | |||
| 250 | $ 4.81 | |||
| 500 | $ 4.55 | |||
| Digi-Reel® | 1 | $ 9.92 | ||
| 10 | $ 6.89 | |||
| 25 | $ 6.11 | |||
| 100 | $ 5.23 | |||
| 250 | $ 4.81 | |||
| 500 | $ 4.55 | |||
| Tape & Reel (TR) | 1000 | $ 4.34 | ||
| 2000 | $ 4.25 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 8.52 | |
| 10 | $ 7.30 | |||
| 25 | $ 6.90 | |||
| 50 | $ 6.49 | |||
| 100 | $ 6.08 | |||
| 250 | $ 5.83 | |||
| 500 | $ 5.58 | |||
| 1000 | $ 4.73 | |||
Description
General part information
SCS230ANHR Series
Switching loss reduced, enabling high-speed switching. (Wide creepage distance, 3-pin package)
