AR2003FV-13
ActiveSECONDARY SIDE PWM CNTRLR SYNCHRONOUS RECTIFICATION CONTROLLER 600KHZ 14-PIN DFN T/R
Deep-Dive with AI
Search across all available documentation for this part.
AR2003FV-13
ActiveSECONDARY SIDE PWM CNTRLR SYNCHRONOUS RECTIFICATION CONTROLLER 600KHZ 14-PIN DFN T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AR2003FV-13 |
|---|---|
| Applications | Active/Synchronous Rectification Controller |
| Current - Supply | 5 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

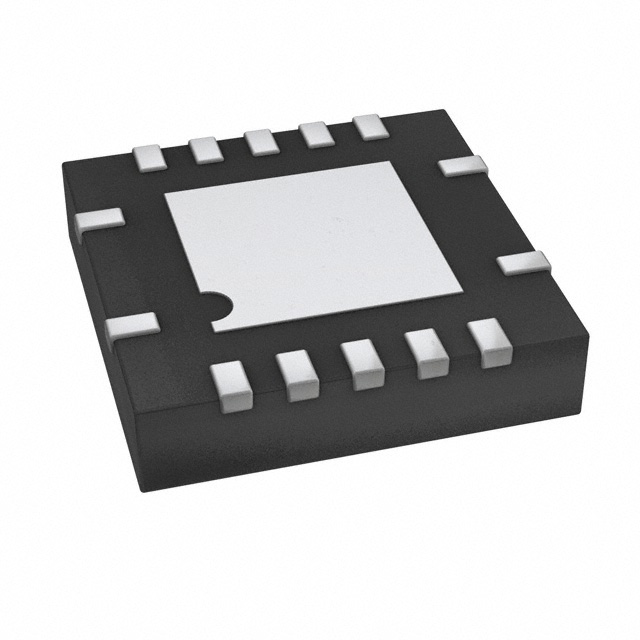

| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | V-DFN3535-14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.41 | |
| 6000 | $ 0.39 | |||
| 9000 | $ 0.37 | |||
| 15000 | $ 0.36 | |||
| 21000 | $ 0.35 | |||
Description
General part information
AR2003FV Series
The AR2003 is Active/Synchronous Rectification Controller, providing output voltage from 4.5V to 20V. Using internal drain-to-source voltage sensing, the AR2003 is ideal for Flyback, LLC-resonant and other power supply architectures. By using SFB pin, output voltage can be changed dynamically by changing the Output Voltage Control pin’s level.
