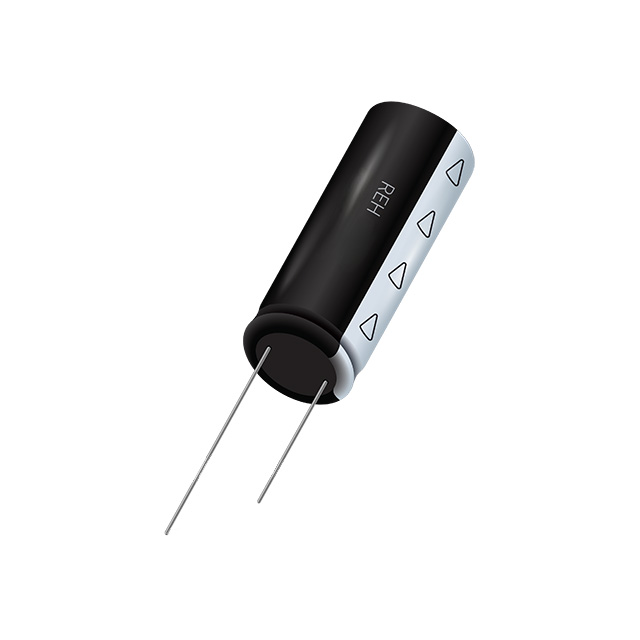

REH1225222M010K

Active

Kyocera AVX

CAPACITOR: ELECTROLYTIC; THT; 2200UF; 10VDC; Ø12.5X25MM; ±20%; REH

Search across all available documentation for this part.

Active

Kyocera AVX

CAPACITOR: ELECTROLYTIC; THT; 2200UF; 10VDC; Ø12.5X25MM; ±20%; REH

Technical Specifications

Parameters and characteristics for this part

Specification	REH1225222M010K

Applications	General Purpose
Capacitance	2.2 mF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.43 A
Ripple Current @ Low Frequency	1.144 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	10 V

Part	Package / Case	Voltage - Rated	Capacitance	Applications	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Polarization	Mounting Type
Kyocera AVX REH1025222M016K	Radial Can	16 V	2.2 mF	General Purpose	20 %	125 °C	-40 °C	1.063 in	27 mm	4000 Hrs	10 mm	0.394 in	980 mA	5 mm	0.197 in	784 mA	Polar	Through Hole
Kyocera AVX REH1225222M010K	Radial Can	10 V	2.2 mF	General Purpose	20 %	125 °C	-40 °C	1.063 in	27 mm	5000 Hrs	12.5 mm	0.492 in	1.43 A	5 mm	0.197 in	1.144 A	Polar	Through Hole
Kyocera AVX REH1225152M035K	Radial Can	35 V	1.5 mF	General Purpose	20 %	125 °C	-40 °C	1.063 in	27 mm	5000 Hrs	12.5 mm	0.492 in	2.23 A	5 mm	0.197 in	1.6725 A	Polar	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 mF 10 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 125°C
