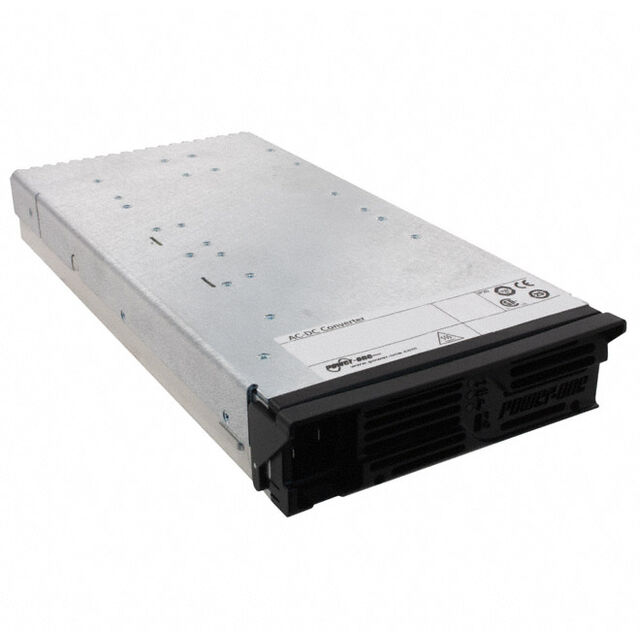

FNP1500-48G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 12V 1500W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 48V 12V 1500W

Technical Specifications

Parameters and characteristics for this part

Specification	FNP1500-48G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	32.2 A
Current - Output 2	1 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, Standby Output, Remote Sense, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1500 W
Size / Dimension [x]	11 in
Size / Dimension [x]	279.4 mm
Size / Dimension [y]	40.5 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	5.6 "
Size / Dimension [z]	141.2 mm
Type	Front End
Voltage - Isolation	4000 V
Voltage - Output 1	48 V
Voltage - Output 2	12 V

Part	Approval Agency	Voltage - Output 2	Current - Output 1	Number of Outputs	Applications	Current - Output 2	Mounting Type	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Minimum Load Required	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Output 1	Type
EOS Power India Private Ltd FNP1500-48G	CE	12 V	32.2 A	2	ITE (Commercial)	1 A	Rack Mount	1500 W	4000 V	70 °C	0 °C	90 %		5.6 "	11 in	141.2 mm	40.5 mm	1.6 "	279.4 mm	Adjustable Output I2C Interface Remote Sense Standby Output Universal Input	48 V	Front End

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 1362.50

General part information

Front End AC DC Converters 2 Output 48V 12V 85 ~ 264 VAC Input
