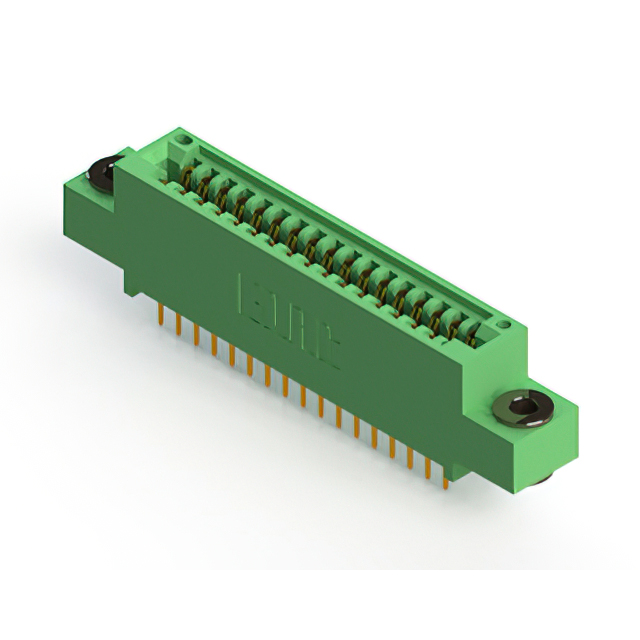

345-034-525-503

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

345-034-525-503

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 34 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-034-525-503

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-034 Series

...

Part	Gender	Contact Finish	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Card Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Termination	Pitch [x]	Pitch [x]	Termination Rows	Mounting Type	Read Out	Features
EDAC Inc. 345-034-523-404	Female	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Single Edge	Copper Alloy	-40 °C	105 ░C	34	Cantilever	10 Áin	0.25 Ám	34	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Polyester Thermoplastic	Solder	2.54 mm	0.1 in	1	Through Hole	Single
EDAC Inc. 345-034-525-407	Female	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Single Edge	Copper Alloy	-40 °C	105 ░C	34	Cantilever	10 Áin	0.25 Ám	34		M3 Threaded Insert Top Mount Opening		Polyester Thermoplastic	Solder	2.54 mm	0.1 in	1	Through Hole	Single
EDAC Inc. 345-034-556-503	Female	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Dual Edge	Copper Alloy	-40 °C	105 ░C		Cantilever	10 Áin	0.25 Ám	34	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Polyester Thermoplastic	Solder	2.54 mm	0.1 in	2	Board Edge Straddle Mount	Dual	Card Extender
EDAC Inc. 345-034-520-603	Female	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Single Edge	Copper Alloy	-40 °C	105 ░C	34	Cantilever	10 Áin	0.25 Ám	34	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Polyester Thermoplastic	Solder	2.54 mm	0.1 in	1	Through Hole	Single
EDAC Inc. 345-034-523-101	Female	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Single Edge	Copper Alloy	-40 °C	105 ░C	34	Cantilever	10 Áin	0.25 Ám	34				Polyester Thermoplastic	Solder	2.54 mm	0.1 in	1	Through Hole	Single
EDAC Inc. 345-034-525-503	Female	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Dual Edge	Copper Alloy	-40 °C	105 ░C		Cantilever	10 Áin	0.25 Ám	34	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Polyester Thermoplastic	Solder	2.54 mm	0.1 in	2	Through Hole	Dual
EDAC Inc. 345-034-556-858	Female	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Dual Edge	Copper Alloy	-40 °C	105 ░C		Cantilever	10 Áin	0.25 Ám	34		4-40 Threaded Insert Top Mount Opening		Polyester Thermoplastic	Solder	2.54 mm	0.1 in	2	Board Edge Straddle Mount	Dual
EDAC Inc. 345-034-542-488	Female	Gold	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Single Edge	Copper Alloy	-40 °C	105 ░C	34	Cantilever	10 Áin	0.25 Ám	34		4-40 Threaded Insert Top Mount Opening		Polyester Thermoplastic	Wire Wrap	2.54 mm	0.1 in	1	Through Hole	Single	Card Guides
EDAC Inc. 345-034-559-201	Female	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Dual Edge	Copper Alloy	-40 °C	105 ░C		Cantilever	10 Áin	0.25 Ám	34				Polyester Thermoplastic	Wire Wrap	2.54 mm	0.1 in	2	Through Hole Right Angle	Dual
EDAC Inc. 345-034-556-212	Female	Gold	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	Non Specified - Dual Edge	Copper Alloy	-40 °C	105 ░C		Cantilever	10 Áin	0.25 Ám	34	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Polyester Thermoplastic	Solder	2.54 mm	0.1 in	2	Board Edge Straddle Mount	Dual	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 8.65
Newark	Each	25	$ 16.96
		50	$ 16.41
		100	$ 15.32
		250	$ 14.77
		500	$ 13.95

Description

General part information

345-034 Series

34 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Documents

Technical documentation and resources

Drawing EN

Datasheet
