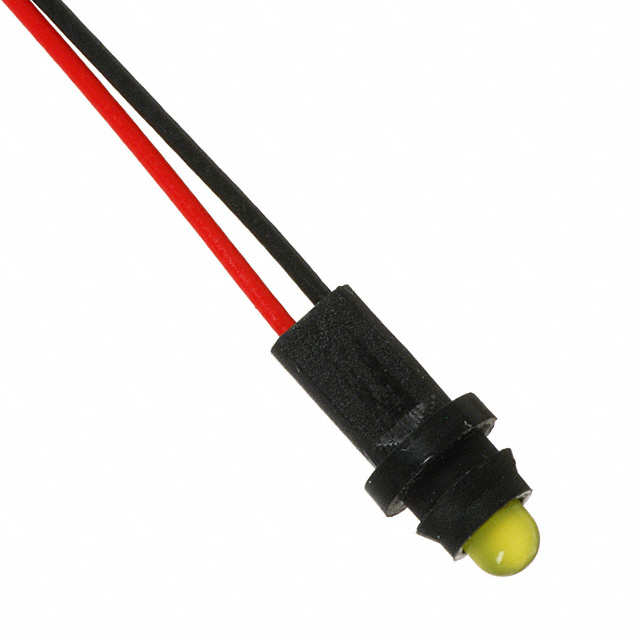

SSI-RM3091SYD-150

Active

Lumex Opto/Components Inc.

LED 3MM SUP YEL 6"LDS REAR PNLMT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 3MM SUP YEL 6"LDS REAR PNLMT

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Millicandela Rating	Lamp Color	Panel Cutout Shape	Lens Style	Current	Type	Lens Size	Lens Size	Wavelength - Peak	Voltage	Viewing Angle	Millicandela Rating [custom]	Millicandela Rating [custom]
Lumex Opto/Components Inc. SSI-RM3091SUGD1561
Lumex Opto/Components Inc. SSI-RM3091SID-150	Red	0.2 in	5.08 mm	Diffused	100 mcd	Red	Round	Round with Domed Top	30 mA	LED	3 mm	T-1	636 nm	2 V	60 °
Lumex Opto/Components Inc. SSI-RM3091GD-150	Green	0.2 in	5.08 mm	Diffused	20 mcd	Green	Round	Round with Domed Top	25 mA	LED	3 mm	T-1	565 nm	2.2 V	60 °
Lumex Opto/Components Inc. SSI-RM3091IGW-150	White	0.2 in	5.08 mm	Diffused		Green Red	Round	Round with Domed Top	20 mA 20 mA	LED	3 mm	T-1	565 nm 635 nm	2 V 2.2 V	60 °	20 mcd	30 mcd
Lumex Opto/Components Inc. SSI-RM3091SUGD-150	Green	0.2 in	5.08 mm	Diffused	50 mcd	Green	Round	Round with Domed Top	25 mA	LED	3 mm	T-1		2.2 V	60 °
Lumex Opto/Components Inc. SSI-RM3091SYD-150	Yellow	0.2 in	5.08 mm	Diffused	100 mcd	Yellow	Round	Round with Domed Top	30 mA	LED	3 mm	T-1	590 nm	2.1 V	60 °
Lumex Opto/Components Inc. SSI-RM3091SOD-150	Orange	0.2 in	5.08 mm	Diffused	100 mcd	Orange	Round	Round with Domed Top	30 mA	LED	3 mm	T-1	610 nm	2 V	60 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Yellow Diffused 60° 2.1V 30mA Wire Leads - 6" (152.40mm)
