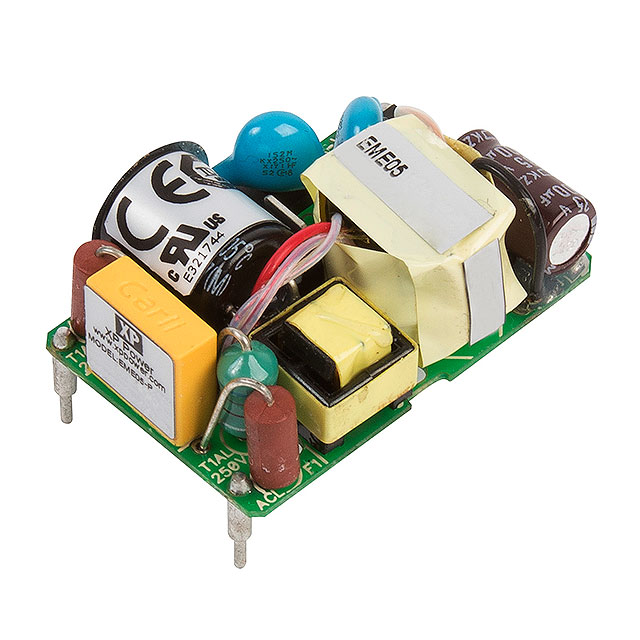

EME05US05-P
ActiveXP POWER
AC/DC CONVERTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EME05US05-P
ActiveXP POWER
AC/DC CONVERTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EME05US05-P |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CE, TUV |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 35.6 mm |
| Size / Dimension [x] | 1.4 in |
| Size / Dimension [y] | 23.7 mm |
| Size / Dimension [y] | 0.93 in |
| Size / Dimension [z] | 13 mm |
| Size / Dimension [z] | 0.51 in |
| Standard Number | 60601-1 |
| Type | Open Frame |
| Voltage - Output 1 | 5 V |
| Weight | 13.61 g |
| Weight | 0.03 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EME05US05 Series
Open Frame AC DC Converters 1 Output 5V 1A 85 ~ 264 VAC Input
