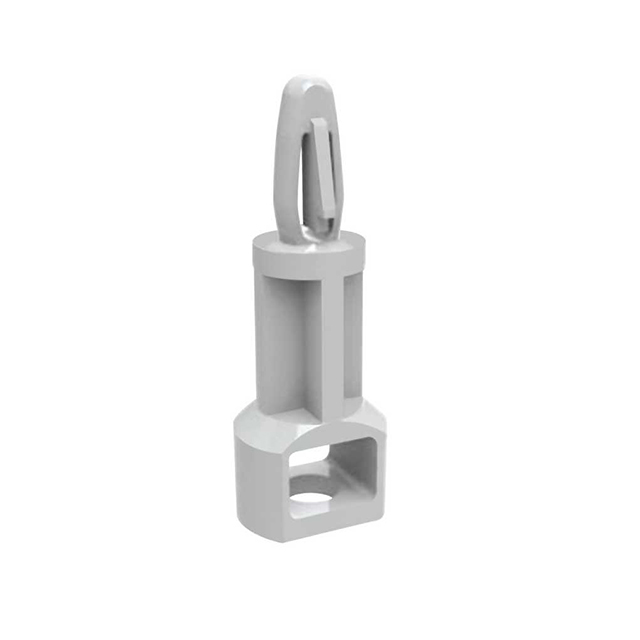

SRLCBS-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK/RIVET NYL 1/2"
Deep-Dive with AI
Search across all available documentation for this part.
SRLCBS-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK/RIVET NYL 1/2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRLCBS-8-01 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.902 in |
| Length - Overall [x] | 22.9 mm |
| Material | Nylon |
| Mounting Hole Diameter [Max] [diameter] | 4.1 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.161 in |
| Mounting Hole Diameter [Min] [diameter] | 4 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.157 in |
| Mounting Type | Snap Rivet |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 5 | $ 0.20 | |||
| 10 | $ 0.17 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
Description
General part information
SRLCBS Series
Board Support Snap Lock / Snap Rivet Nylon 0.500" (12.70mm) 1/2"
Documents
Technical documentation and resources
No documents available
