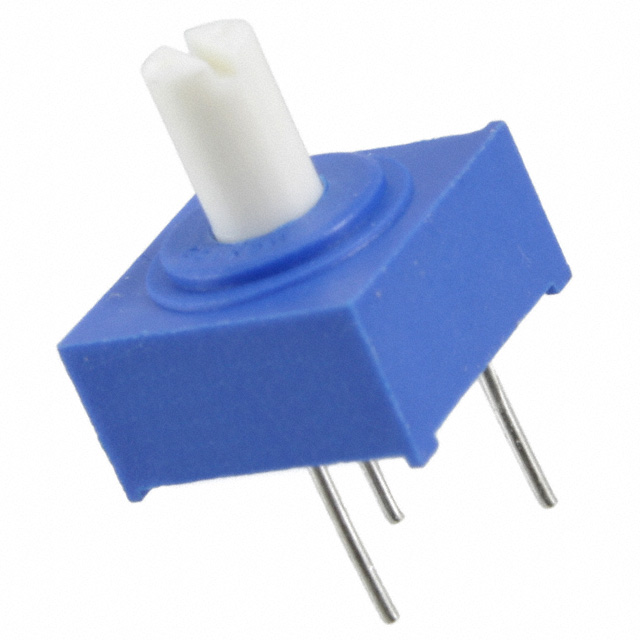

3315Y-025-006L

Active

Bourns Inc.

ENCODER - 9MM SQ /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

ENCODER - 9MM SQ /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	3315Y-025-006L

Actuator Type	1/8
Built in Switch	False
Detent	False
Encoder Type	Mechanical
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	6
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

Part	Orientation	Rotational Life (Cycles Min) [Min]	Termination Style	Output Type	Pulses per Revolution	Encoder Type	Actuator Type
Bourns Inc. 3315Y-111-016L
Bourns Inc. 3315Y-025-006L	Vertical	100K	PC Pin	Quadrature (Incremental)	6	Mechanical	1/8
Bourns Inc. 3315Y-025-016L	Vertical	25K	PC Pin	Quadrature (Incremental)	16	Mechanical	1/8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 6 Quadrature (Incremental) Vertical
