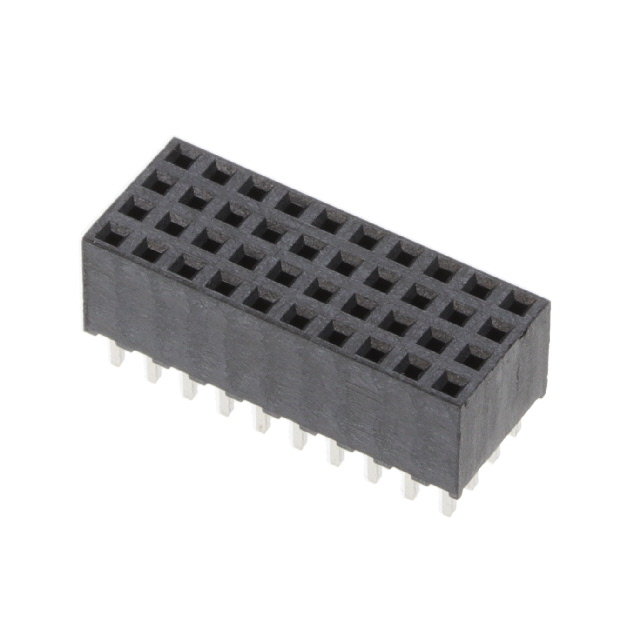

YTQ-110-01-L-Q

Active

Samtec Inc.

CONN SKT 2MM PCB 4ROW 40POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SKT 2MM PCB 4ROW 40POS

Technical Specifications

Parameters and characteristics for this part

Specification	YTQ-110-01-L-Q

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Contact Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Connector Type	Fastening Type	Mounting Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material
Samtec Inc. YTQ-110-01-L-Q	Forked	Phosphor Bronze	0.079 in	2 mm	-55 °C	125 °C	0.09 "	2.29 mm	Tin	Black	1.27 µm	50 µin	Gold	Socket	Push-Pull	Through Hole	Square	10 çin	0.25 çm	6.35 mm	0.25 in	40	All	Solder	0.079 in	2 mm	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
