19413100232

Active

HARTING Technology Group

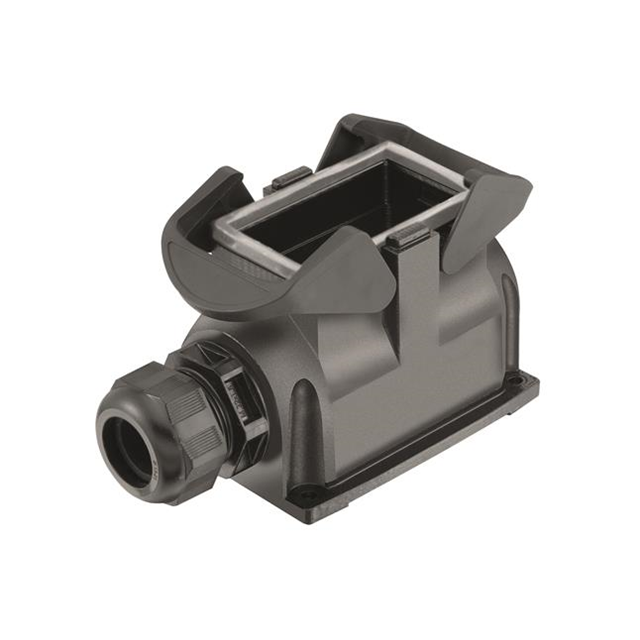

HAN-ECO MODULAR 10B SURFACE MOUNT HOUSING 1XM32 W/ GLAND - OUTDOOR (HOLDS CABLE 13-21MM)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 10B SURFACE MOUNT HOUSING 1XM32 W/ GLAND - OUTDOOR (HOLDS CABLE 13-21MM)

Technical Specifications

Parameters and characteristics for this part

Specification	19413100232

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.898 "
Size / Dimension [x]	99 mm
Size / Dimension [y]	68 mm
Size / Dimension [y]	2.677 "
Size / Dimension [z]	2.843 in
Size / Dimension [z]	72.2 mm
Style	Side Entry
Thread Size	M32

Part	Ingress Protection	Thread Size	Housing Material	Lock Location	Housing Color	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Features
HARTING Technology Group 19413100232	IP65 - Dust Tight Water Resistant	M32	Polyamide (PA) Nylon Glass Filled	Locking Clip (2) on Base Bottom	Black	10B	3.898 "	68 mm	2.843 in	72.2 mm	99 mm	2.677 "	Base - Box Mount	125 °C	-40 °C	Side Entry
HARTING Technology Group 19413100272	IP65 - Dust Tight Water Resistant	M32	Polyamide (PA) Nylon Glass Filled	Locking Clip (2) on Base Bottom	Black	10B	3.898 "	68 mm	2.843 in	72.2 mm	99 mm	2.677 "	Base - Box Mount	125 °C	-40 °C	Side Entry Dual	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M32 10B IP65 - Dust Tight, Water Resistant
