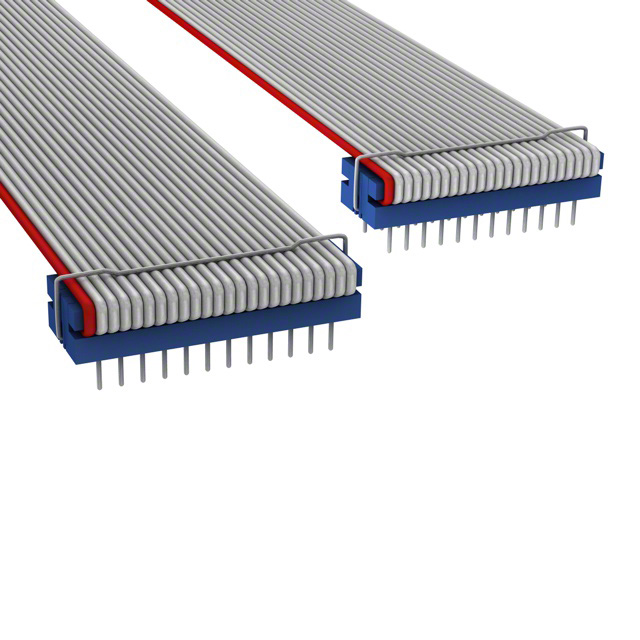

C0RRS-2406G

Active

CW Industries

DIP CABLE - CDR24S/AE24G/CDR24S

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR24S/AE24G/CDR24S

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Cable Termination	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Contact Finish	Usage	Pitch - Connector	Pitch - Connector	Color	Number of Rows	Connector Type	Pitch - Cable	Pitch - Cable	Length	Length	Length
CW Industries C0RRS-2436M	3 ft	914.4 mm	IDC	Unshielded	2.54 µm	100 µin	24	Strain Relief	Tin	Board In Socket (0.6")	0.1 in	2.54 mm	Multiple Ribbon	2	DIP to DIP Reversed	0.05 "	1.27 mm
CW Industries C0RRS-2418M	1.5 ft	457.2 mm	IDC	Unshielded	2.54 µm	100 µin	24	Strain Relief	Tin	Board In Socket (0.6")	0.1 in	2.54 mm	Multiple Ribbon	2	DIP to DIP Reversed	0.05 "	1.27 mm
CW Industries C0RRS-2436G	3 ft	914.4 mm	IDC	Unshielded	2.54 µm	100 µin	24	Strain Relief	Tin	Board In Socket (0.6")	0.1 in	2.54 mm		2	DIP to DIP Reversed	0.05 "	1.27 mm
CW Industries C0RRS-2406G			IDC	Unshielded	2.54 µm	100 µin	24	Strain Relief	Tin	Board In Socket (0.6")	0.1 in	2.54 mm		2	DIP to DIP Reversed	0.05 "	1.27 mm	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24 Position Cable Assembly Rectangular DIP to DIP, Reversed 0.500' (152.40mm, 6.00")
