1065858

Active

SICK, Inc.

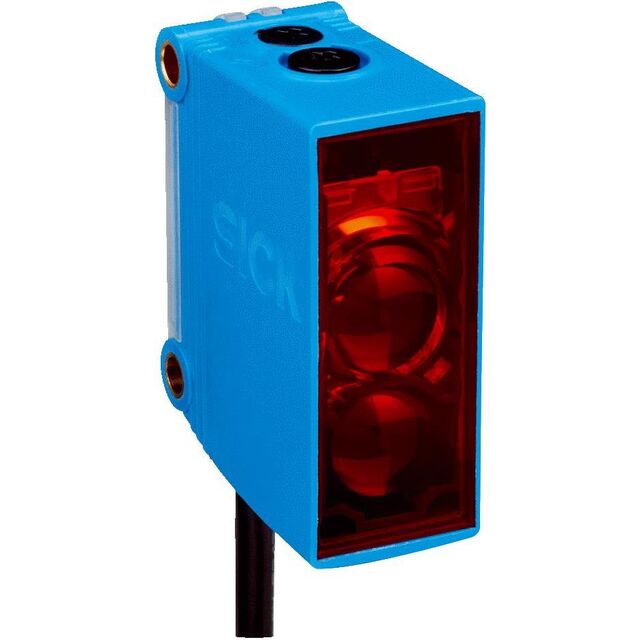

SENSOR PROXIMITY 950MM NPN

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROXIMITY 950MM NPN

Technical Specifications

Parameters and characteristics for this part

Specification	1065858

Adjustment Type	Adjustable, 5-Turn Potentiometer
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67
Light Source	625 nm
Light Source	Red
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 °C
Output Configuration	NPN
Response Time	500 µs
Sensing Distance [Max]	37.402 "
Sensing Distance [Max]	950 mm
Sensing Distance [Min]	20 mm
Sensing Distance [Min]	0.787 "
Sensing Method	Proximity
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Connection Method	Response Time	Cable Length	Cable Length	Adjustment Type	Light Source	Light Source	Ingress Protection	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Distance [Max]
SICK, Inc. 1065859	60 °C	-30 °C	Proximity	20 mm	37.402 "	950 mm	0.787 "	Cable	500 µs	78.74 in	2 m	Adjustable 5-Turn Potentiometer	625 nm	Red	IP67	NPN	30 VDC	10 VDC
SICK, Inc. 1065854	60 °C	-30 °C	Proximity	20 mm	37.402 "	950 mm	0.787 "	Cable	500 µs	78.74 in	2 m	Adjustable 5-Turn Potentiometer	625 nm	Red	IP67	PNP	30 VDC	10 VDC
SICK, Inc. 1066852	60 °C	-30 ░C	Proximity	20 mm	37.402 "	950 mm	0.787 "	Connector M12	1 ms				625 nm	Red	IP67	PNP	30 VDC	10 VDC
SICK, Inc. 1065858	60 °C	-30 °C	Proximity	20 mm	37.402 "	950 mm	0.787 "	Cable	500 µs	78.74 in	2 m	Adjustable 5-Turn Potentiometer	625 nm	Red	IP67	NPN	30 VDC	10 VDC
SICK, Inc. 1065856	60 °C	-30 °C	Proximity	20 mm	37.402 "	950 mm	0.787 "	Cable	500 µs	78.74 in	2 m	Adjustable 5-Turn Potentiometer	625 nm	Red	IP67	PNP	30 VDC	10 VDC
SICK, Inc. 1064694	60 °C	-30 ░C		20 mm	37.402 "	950 mm	0.787 "	4POS Connector M12	500 µs			Adjustable 5-Turn Potentiometer		Red LED	IP67	PNP - Dark-ON/Light-ON - Selectable	30 VDC	10 VDC
SICK, Inc. 1065863	60 °C	-30 °C	Proximity	20 mm	47.244 "		0.787 "	Cable	10 ms	78.74 in	2 m	Adjustable 5-Turn Potentiometer		Infrared	IP67	Relay - Dark-ON/Light-ON	240 VDC	24 V	120 cm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 220.38

General part information

Proximity Optical Sensor 0.787" ~ 37.402" (20mm ~ 950mm) NPN
