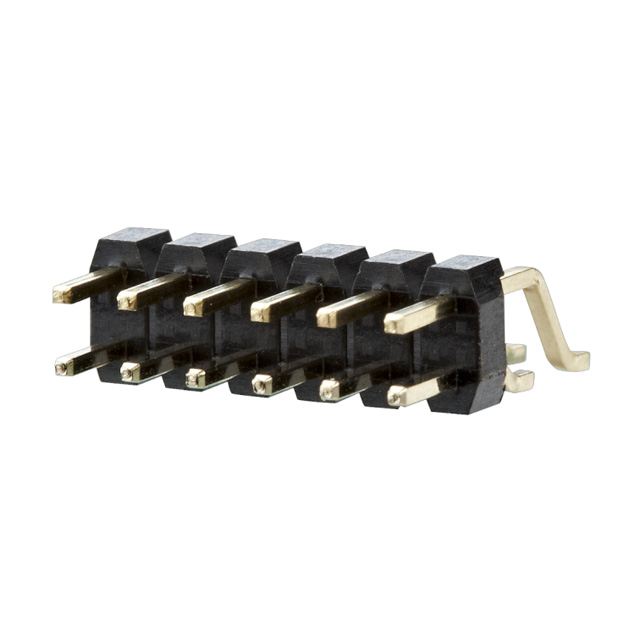

PM20C05HBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	PM20C05HBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Fastening Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Number of Rows	Contact Shape	Connector Type	Insulation Material	Insulation Height [custom]	Insulation Height [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Contact Finish Thickness - Mating	Contact Type	Contact Length - Mating	Contact Length - Mating
METZ CONNECT USA Inc. PM20C05HBDN	Unshrouded	Push-Pull	Solder	0.079 in	2 mm	10	0.079 in	2 mm	Black	All	Gold	2	Square	Header	Polyethylene	0.157 in	4 mm	-40 °C	105 ░C	Surface Mount Right Angle	Copper Alloy	Flash	Male Pin	3.05 mm	0.12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 10 position 0.079" (2.00mm)
