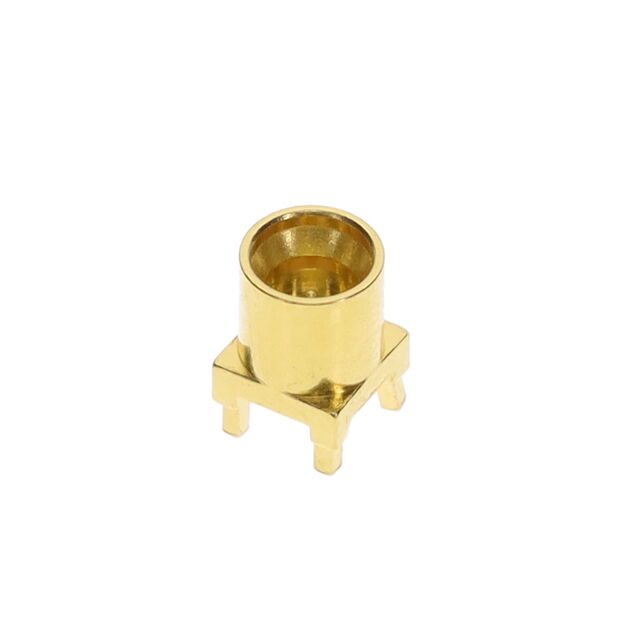

925-202J-51PT

Active

Amphenol RF

RF / COAXIAL CONNECTOR, SMPM COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

RF / COAXIAL CONNECTOR, SMPM COAXIAL, STRAIGHT JACK, THROUGH HOLE VERTICAL, 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	925-202J-51PT

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Impedance	Dielectric Material	Body Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Center Contact Plating	Connector Type	Contact Termination	Fastening Type	Frequency - Max [Max]	Housing Color	Shield Termination	Features	Mounting Type	Center Contact Material	Body Finish
Amphenol RF 925-201J-51S	50 Ohms	Polytetrafluoroethylene (PTFE)	Stainless Steel	1	-65 ░C	165 °C	SMPM	Gold	Jack Male Pin	Solder	Snap-On	40 GHz	Silver	Solder	Extended Insulation Smooth Bore	Panel Mount Threaded	Beryllium Copper
Amphenol RF 925-202J-51PT	50 Ohms	Polytetrafluoroethylene (PTFE)	Brass	1	-65 ░C	165 °C	SMPM	Gold	Jack Male Pin	Solder	Snap-On	26.5 GHz	Gold	Solder	Full Detent	Through Hole	Beryllium Copper	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPM Connector Jack, Male Pin 50 Ohms Through Hole Solder
