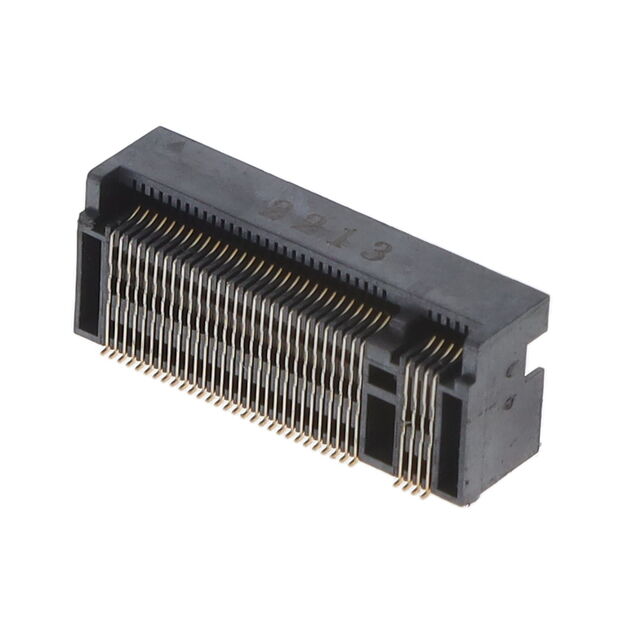

M2-J-67-R-SMT-8.50-KM-T/R
ActiveAdam Tech
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2-J-67-R-SMT-8.50-KM-T/R
ActiveAdam Tech
CONN M.2 FMALE 67POS 0.020 GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2-J-67-R-SMT-8.50-KM-T/R |
|---|---|
| Card Type | M.2 (NGFF) Mini Card |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Features | Keyed, Solder Retention, Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.85 | |
| 10 | $ 1.41 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 1.85 | ||
| 10 | $ 1.41 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.09 | |||
| Tape & Reel (TR) | 400 | $ 0.55 | ||
Description
General part information
M2-J-67 Series
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm) Black
