500-0021-N10-87
ActiveCinch Connectivity Solutions Trompeter

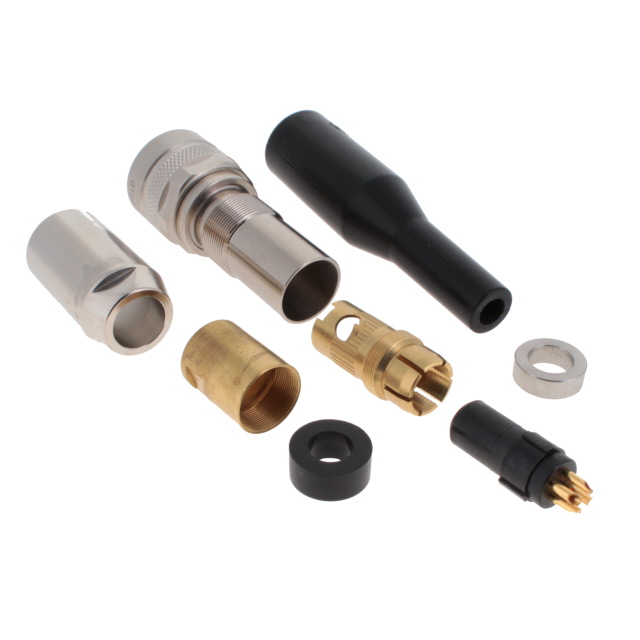

CIRCULAR CONNECTOR, DMS-TP SERIES, MIL-DTL-45204 SERIES, STRAIGHT PLUG, 4 CONTACTS, SOLDER SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
500-0021-N10-87
ActiveCinch Connectivity Solutions Trompeter
CIRCULAR CONNECTOR, DMS-TP SERIES, MIL-DTL-45204 SERIES, STRAIGHT PLUG, 4 CONTACTS, SOLDER SOCKET
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 500-0021-N10-87 |
|---|---|
| Applications | Industrial |
| Cable Opening [custom] | 8.7 mm |
| Cable Opening [custom] | 0.343 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Nickel |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Fastening Type | Push-Pull |
| Features | Coupling Nut, Backshell |
| Ingress Protection | Environment Sealed |
| Insert Material | Molybdenum Disulfide (MoS2), Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 10-4 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 25 | $ 154.55 | |
| 50 | $ 145.80 | |||
Description
General part information
500-0021 Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
