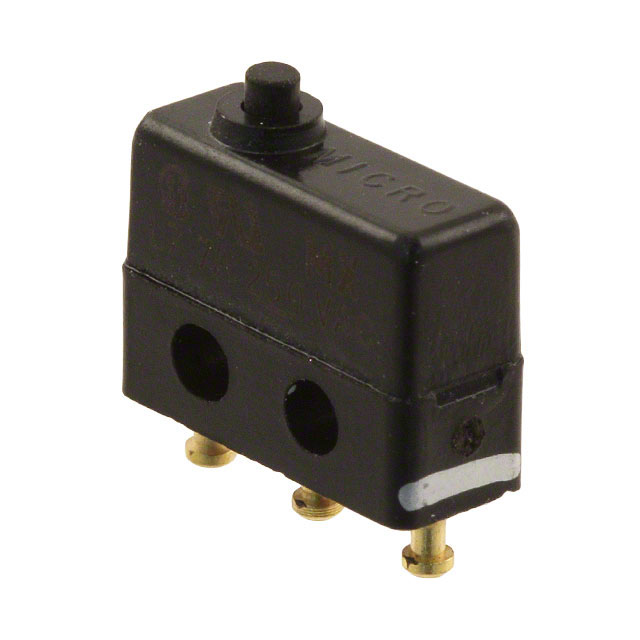

4SX36-T

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 7A 250V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 7A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	4SX36-T

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Differential Travel	0.13 mm
Differential Travel	0.005 in
Mounting Type	Chassis Mount
Operating Force	141 gf
Operating Position	8.13 mm
Operating Position	0.32 in
Operating Temperature [Max] [custom]	204 °C
Operating Temperature [Min] [custom]	-55 °C
Overtravel	0.25 mm
Overtravel	0.01 in
Pretravel	0.02 in
Pretravel	0.5 mm
Release Force	28 gf
Switch Function	On-Mom
Termination Style	Solder Turret
Voltage Rating - AC	250 V

Part	Mounting Type	Actuator Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Overtravel	Overtravel	Pretravel	Pretravel	Release Force	Switch Function	Operating Position	Operating Position	Operating Force	Differential Travel	Differential Travel	Circuit	Termination Style	Voltage Rating - AC
Honeywell Sensing and Productivity Solutions 4SX36-T	Chassis Mount	Round (Pin Plunger)	204 °C	-55 °C	0.25 mm	0.01 in	0.02 in	0.5 mm	28 gf	On-Mom	8.13 mm	0.32 in	141 gf	0.13 mm	0.005 in	SPDT	Solder Turret	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
