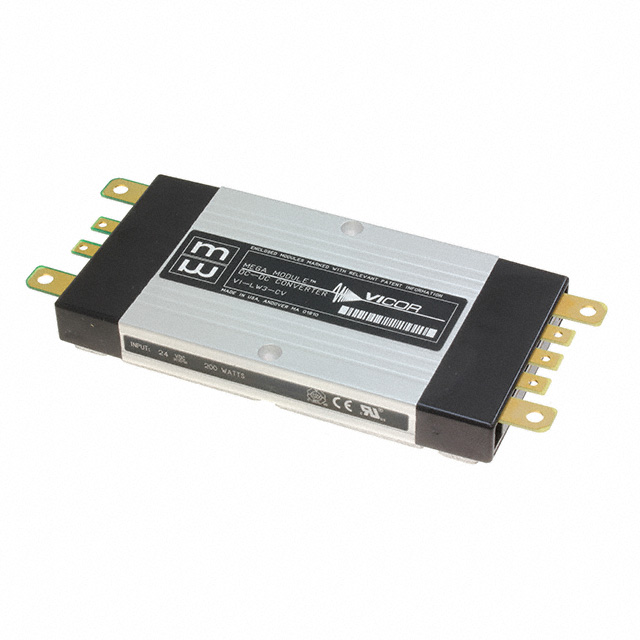

VI-LW3-CV

Active

Vicor Corporation

DC/DC CONVERTER 24V 150W

Search across all available documentation for this part.

Active

Vicor Corporation

DC/DC CONVERTER 24V 150W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Type	Power (Watts)	Applications	Voltage - Output 1	Efficiency
Vicor Corporation VI-LW3-EY	18 V	CE cTUVus cULus	36 V	Chassis Mount	2.08 A	3000 V	-10 °C	85 °C	1	Enclosed	50 W	ITE (Commercial)	24 V	88 %
Vicor Corporation VI-LW3-CW	18 V	CE cTUVus cULus	36 V	Chassis Mount	4.17 A	3000 V	-25 °C	85 °C	1	Enclosed	100 W	ITE (Commercial)	24 V	90 %
Vicor Corporation VI-LW3-MV	18 V	CE cTUVus cULus	36 V	Chassis Mount	6.25 A	3000 V	-55 °C	85 °C	1	Enclosed	150 W	ITE (Commercial)	24 V	90 %
Vicor Corporation VI-LW3-CV	18 V	CE cTUVus cULus	36 V	Chassis Mount	6.25 A	3000 V	-25 °C	85 °C	1	Enclosed	150 W	ITE (Commercial)	24 V	90 %
Vicor Corporation VI-LW3-EW	18 V	CE cTUVus cULus	36 V	Chassis Mount	4.17 A	3000 V	-10 °C	85 °C	1	Enclosed	100 W	ITE (Commercial)	24 V	88 %
Vicor Corporation VI-LW3-CX	18 V	CE cTUVus cULus	36 V	Chassis Mount	3.13 A	3000 V	-25 °C	85 °C	1	Enclosed	75 W	ITE (Commercial)	24 V	90 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 24V 6.25A 36V Input

Technical documentation and resources
