CUB4CL20

Obsolete

RED LION CONTROLS

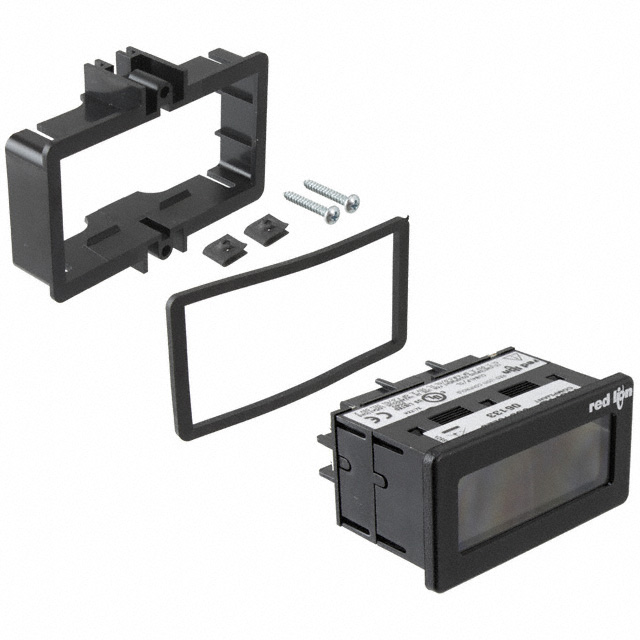

DIGITAL PANEL METER, MODEL CUB4CL, CURRENT LOOP INDICATOR, LCD, RED

Search across all available documentation for this part.

Obsolete

RED LION CONTROLS

DIGITAL PANEL METER, MODEL CUB4CL, CURRENT LOOP INDICATOR, LCD, RED

Technical Specifications

Parameters and characteristics for this part

Specification	CUB4CL20

Display Characters - Height	0.6 in
Display Characters - Height	15.2 mm
Display Type	LCD - Red Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	50 mA
Measuring Range [Min]	4 mA
Measuring Type	Process
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	33 mm
Termination Style	Screw Terminal
Type	Process Meter
Voltage - Supply	Loop Power
Voltage - Supply [Max]	28 VDC
Voltage - Supply [Min]	9 VDC
Weight	0.206 lb
Weight	93.44 g

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination Style	Number of Characters Per Row	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Min]	Measuring Range [Max]	Display Characters - Height	Display Characters - Height	Ingress Protection	Display Type	Voltage - Supply [Min]	Voltage - Supply	Voltage - Supply [Max]	Measuring Type	Type	Weight	Weight
RED LION CONTROLS CUB4CL20	68 mm	33 mm	Screw Terminal	3.5	60 °C	0 °C	4 mA	50 mA	0.6 in	15.2 mm	IP65 - Dust Tight Water Resistant	LCD - Red Characters Backlight	9 VDC	Loop Power	28 VDC	Process	Process Meter	0.206 lb	93.44 g
RED LION CONTROLS CUB4CL1B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 266.00

General part information

Process Meter LCD - Red Characters, Backlight Display Panel Mount
