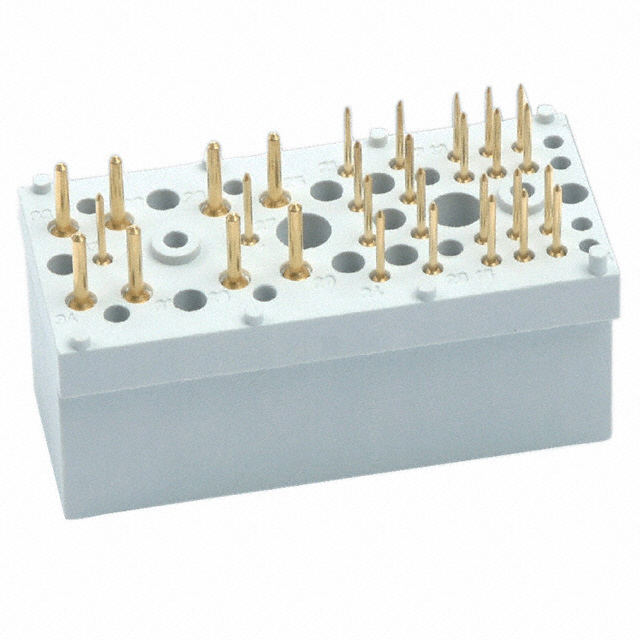

ATC30W08FGE1S5X

Active

Amphenol CONEC

CONN RCPT ATCA 34POS PCB

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN RCPT ATCA 34POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ATC30W08FGE1S5X

Color	Gray
Connector Style	AdvancedTCA®
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	31.5 µin
Contact Finish Thickness	0.8 µm
Contact Layout, Typical [custom]	8
Contact Layout, Typical [custom]	26
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	30
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions Loaded	Features	Color	Connector Style	Mounting Type	Material Flammability Rating	Connector Usage
Amphenol CONEC ATC30W08MAE1S5X	-55 °C	125 °C	Press-Fit	Male Pins Plug	31.5 µin	0.8 µm	Gold	34	8	26	30	Mating Guide	Gray	AdvancedTCA®	Through Hole Right Angle	UL94 V-0	Front Board
Amphenol CONEC ATC30W08FGE1S5X	-55 °C	125 °C	Press-Fit	Receptacle Female Sockets	31.5 µin	0.8 µm	Gold	34	8	26	30		Gray	AdvancedTCA®	Through Hole	UL94 V-0	Backplane

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

34 Connector Receptacle, Female Sockets Through Hole Gray AdvancedTCA®
