19302100291
ActiveHARTING Technology Group

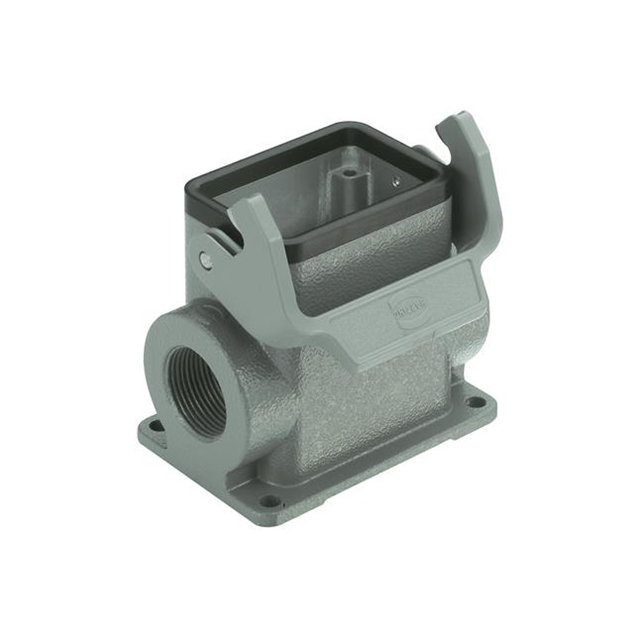

10B SURFACE MOUNT HOUSING, SINGLE LEVER, HIGH CONSTRUCTION, 2XM25 - HIGH MATING CYCLE VERSION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19302100291 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Size / Dimension [x] | 94 mm |
| Size / Dimension [x] | 3.701 " |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [y] | 2.244 " |
| Size / Dimension [z] | 80.8 mm |
| Size / Dimension [z] | 3.181 " |
| Style | Side Entry, Dual |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19302100 Series
Base - Box Mount Connector Side Entry, Dual M25 10B IP65 - Dust Tight, Water Resistant
