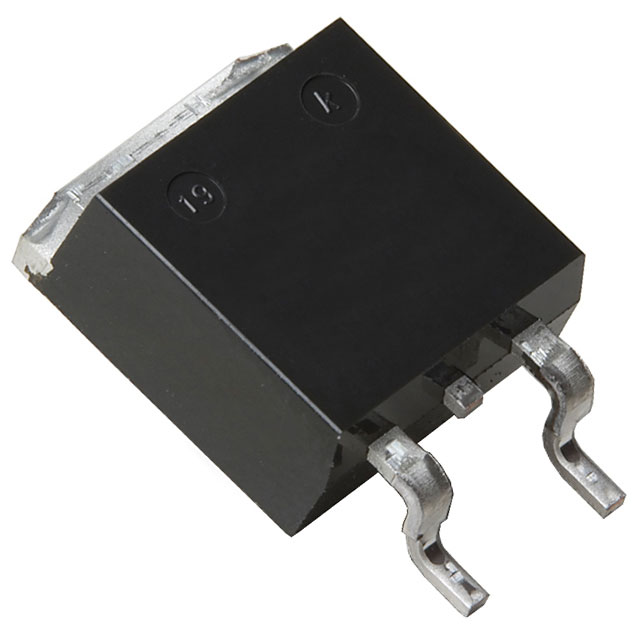

ACTT12B-800CTNJ

Active

WeEn Semiconductors Co., Ltd

TRIAC 800V 12A D2PAK

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

TRIAC 800V 12A D2PAK

Technical Specifications

Parameters and characteristics for this part

Specification	ACTT12B-800CTNJ

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	35 mA
Current - Hold (Ih) (Max) [Max]	30 mA
Current - On State (It (RMS)) (Max)	12 A
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Supplier Device Package	D2PAK
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	800 V

Part	Mounting Type	Current - Hold (Ih) (Max) [Max]	Triac Type	Current - On State (It (RMS)) (Max)	Voltage - Off State	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Supplier Device Package	Configuration	Voltage - Gate Trigger (Vgt) (Max) [Max]	Operating Temperature
WeEn Semiconductors Co., Ltd ACTT12X-800CTQ	Through Hole	50 mA	Standard	12 A	800 V	TO-220-3 Full Pack Isolated Tab	35 mA	TO-220F	Single	1 V	150 °C
WeEn Semiconductors Co., Ltd ACTT12-800CQ	Through Hole	50 mA	Standard	12 A	800 V	TO-220-3	35 mA	TO-220AB	Single	1 V	125 ¯C
WeEn Semiconductors Co., Ltd ACTT12B-800CJ	Surface Mount	50 mA	Standard	12 A	800 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 mA	D2PAK	Single	1 V	125 ¯C
WeEn Semiconductors Co., Ltd ACTT12B-800CTJ	Surface Mount	50 mA	Standard	12 A	800 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 mA	D2PAK	Single	1 V	150 °C
WeEn Semiconductors Co., Ltd ACTT12-800CTNQ	Through Hole	30 mA	Standard	12 A	800 V	TO-220-3	35 mA	TO-220AB	Single	1 V	150 °C
WeEn Semiconductors Co., Ltd ACTT12X-800CTNQ	Through Hole	30 mA	Standard	12 A	800 V	TO-220-3 Full Pack Isolated Tab	35 mA	TO-220F	Single	1 V	150 °C
WeEn Semiconductors Co., Ltd ACTT12B-800CTNJ	Surface Mount	30 mA	Standard	12 A	800 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 mA	D2PAK	Single	1 V	150 °C
WeEn Semiconductors Co., Ltd ACTT12-800CTQ	Through Hole	50 mA	Standard	12 A	800 V	TO-220-3	35 mA	TO-220AB	Single	1 V	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Standard 800 V 12 A Surface Mount D2PAK
