PMR-5V320WCGA
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), 4.5V TO 5.5V, ITE, 1 OUTPUTS, 300 W, 5 V, 60 A
Deep-Dive with AI
Search across all available documentation for this part.
PMR-5V320WCGA
ActiveAC/DC ENCLOSED POWER SUPPLY (PSU), 4.5V TO 5.5V, ITE, 1 OUTPUTS, 300 W, 5 V, 60 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR-5V320WCGA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, CCC, cURus, TUV |
| Current - Output 1 | 60 A |
| Efficiency | 84 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 320 W |
| Size / Dimension [x] | 215 mm |
| Size / Dimension [x] | 8.46 " |
| Size / Dimension [y] | 4.53 " |
| Size / Dimension [y] | 115 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 88 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PMR-5 Series

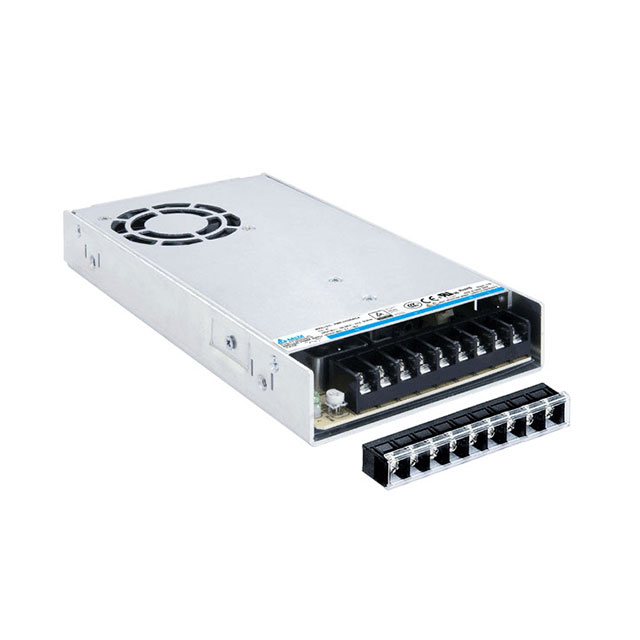

PMR-5V320WCGA is a PMR panel mount power supply. It offers nominal output voltage of 5V. This can withstand shock and vibration according to IEC 60068-2. The product comes with universal AC input voltage range at 88VAC to 264VAC and the automatic fan speed control enables better thermal management. At only 30mm height and encased in a full corrosion resistant aluminum casing, it is made for installation in narrow space while its built-in active PFC circuit provides high power factor values and conforms to harmonic current emission according to IEC/EN 61000-3-2, class A and class D. It includes overvoltage, overload, overcurrent, over temperature, short circuit protection. Application includes building automation, household appliance.
