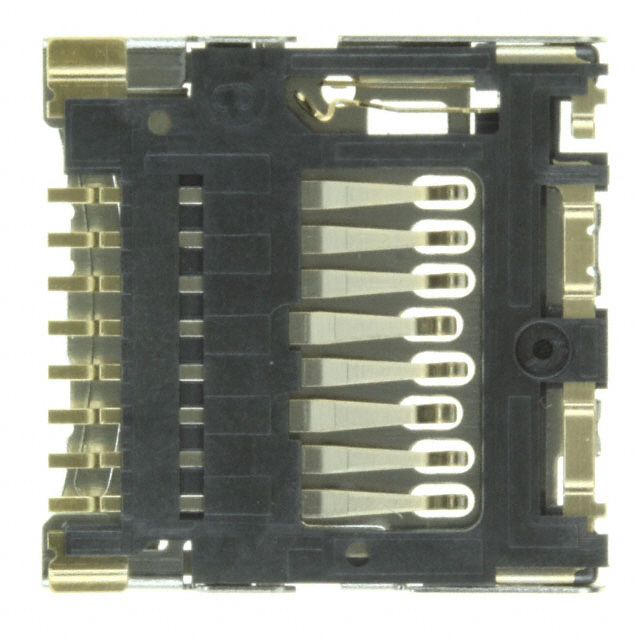

DM3C-SF
ActiveHirose Electric USA, Inc.
CONN MICRO SD CARD HDR 8 POS 1.1MM SOLDER RA SMD 0.5A T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DM3C-SF
ActiveHirose Electric USA, Inc.
CONN MICRO SD CARD HDR 8 POS 1.1MM SOLDER RA SMD 0.5A T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DM3C-SF |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Features | Switch |
| Height Above Board | 0.072 in |
| Height Above Board | 1.83 mm |
| Insertion, Removal Method | Hinged Lid |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.66 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.24 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.66 | |||
| 25 | $ 1.59 | |||
| 50 | $ 1.56 | |||
| 100 | $ 1.48 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.24 | |||
| Tape & Reel (TR) | 1300 | $ 1.06 | ||
| 2600 | $ 0.99 | |||
| 6500 | $ 0.94 | |||
| 9100 | $ 0.92 | |||
Description
General part information
DM3C Series
10 (8 + 2) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
