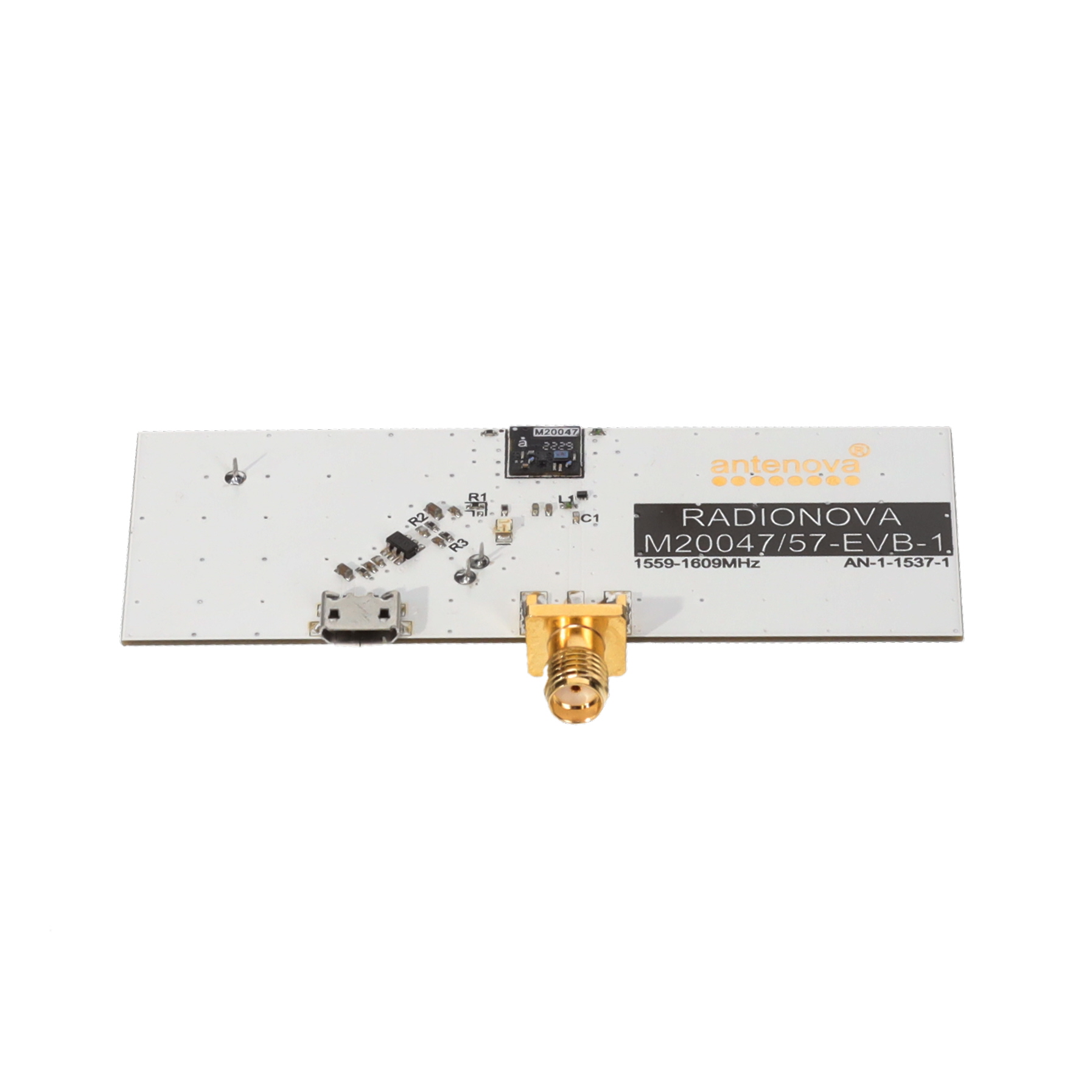

M20047-EVB-1

Active

Antenova

M20047-1 EVALUATION BOARD

Search across all available documentation for this part.

Active

Antenova

M20047-1 EVALUATION BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	M20047-EVB-1

For Use With/Related Products	M20047-1
Frequency [Max]	1.609 GHz
Frequency [Min]	1.559 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Frequency (Center/Band)	Antenna Type	VSWR	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Return Loss	Frequency Range [Max]	Frequency Range [Min]	Termination	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Applications	RF Family/Standard	Gain	Number of Bands	For Use With/Related Products	Supplied Contents	Frequency [Max]	Frequency [Min]	Type
Antenova M20047-1	1.584 GHz	Integrated Trace	1.4	2 GHz	1 GHz	UHF	-12 dB	1.609 GHz	1.559 GHz	Solder	0.043 in	1.1 mm	Surface Mount	General Purpose	Navigation	3 dBi	1
Antenova M20047-EVB-1																		M20047-1	Board(s)	1.609 GHz	1.559 GHz	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

- M20047-1 Antenna 1.559GHz ~ 1.609GHz Evaluation Board
