DCCM9P6E5-36.0BN

Active

Cinch Connectivity Solutions Trompeter

CABLE ASSY D-MIC-D 9P 914.4MM

Deep-Dive with AI

Search across all available documentation for this part.

DCCM9P6E5-36.0BN

Active

Cinch Connectivity Solutions Trompeter

CABLE ASSY D-MIC-D 9P 914.4MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCCM9P6E5-36.0BN

1st Connector	Plug, Male Pins
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	9
Type	D-Type, Micro-D

DCCM9 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Style	Contact Finish	Connector Type	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Material	Current Rating (Amps)	Shell Material, Finish	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Dielectric Material	Mounting Type	Flange Feature	Termination	Backset Spacing	Backset Spacing	Color	Type	1st Connector	2nd Connector	Length [x]	Length [x]
Cinch Connectivity Solutions Trompeter DCCM9PSB	50 µin	1.27 µm	9	D-Type Micro-D	Gold	Male Pins Plug	UL94 V-0	0.043	0.05	Copper Alloy	3 A	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	135 °C	-55 °C	2	Signal	Diallyl Phthalate (DAP) Glass Filled
Cinch Connectivity Solutions Trompeter DCCM9SBSPN	50 µin	1.27 µm	9	D-Type Micro-D	Gold	Receptacle Female Sockets	UL94 V-0	0.043	0.05	Copper Alloy	3 A	Aluminum Alloy Electroless Nickel Plated	Shielded	135 °C	-55 °C	2	Signal	Diallyl Phthalate (DAP) Glass Filled	Through Hole	Female Screwlock Mating Side	Solder
Cinch Connectivity Solutions Trompeter DCCM9PCBRP	50 µin	1.27 µm	9	D-Type Micro-D	Gold	Male Pins Plug	UL94 V-0	0.043	0.05	Copper Alloy	3 A	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	135 °C	-55 °C	2	Signal	Diallyl Phthalate (DAP) Glass Filled	Through Hole Right Angle	Female Screwlock Mating Side	Solder	5.84 mm	0.23 in
Cinch Connectivity Solutions Trompeter DCCM9PBSP	50 µin	1.27 µm	9	D-Type Micro-D	Gold	Male Pins Plug	UL94 V-0	0.043	0.05	Copper Alloy	3 A	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	135 °C	-55 °C	2	Signal	Diallyl Phthalate (DAP) Glass Filled	Through Hole	Female Screwlock Mating Side	Solder
Cinch Connectivity Solutions Trompeter DCCM9SBSP	50 µin	1.27 µm	9	D-Type Micro-D	Gold	Receptacle Female Sockets	UL94 V-0	0.043	0.05	Copper Alloy	3 A	Aluminum Alloy Yellow Chromate Plated Cadmium	Shielded	135 °C	-55 °C	2	Signal	Diallyl Phthalate (DAP) Glass Filled	Through Hole	Female Screwlock Mating Side	Solder
Cinch Connectivity Solutions Trompeter DCCM9P6E5-36.0BN	50 µin	1.27 µm	9		Gold																			Individual Multiple	D-Type Micro-D	Plug Male Pins	Individual Wire Leads	3 ft	914.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.97
		10	$ 51.37
		25	$ 49.39
		50	$ 47.74
		100	$ 45.11

Description

General part information

DCCM9 Series

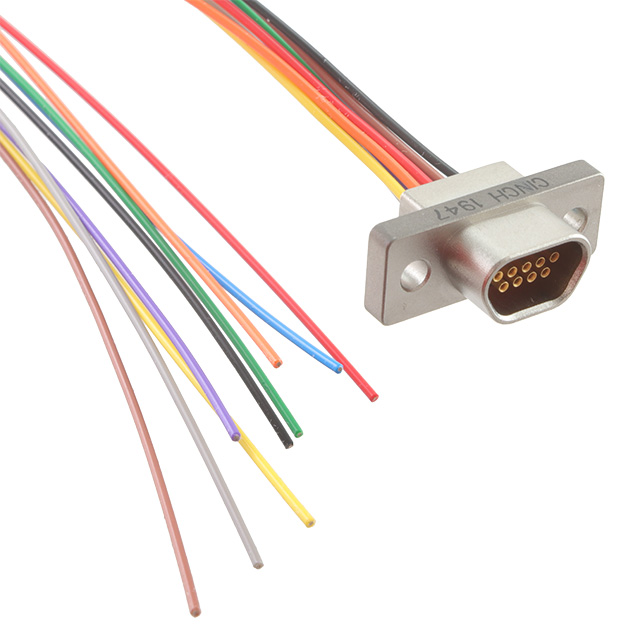

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Plug, Male Pins to Individual Wire Leads

Documents

Technical documentation and resources

No documents available
