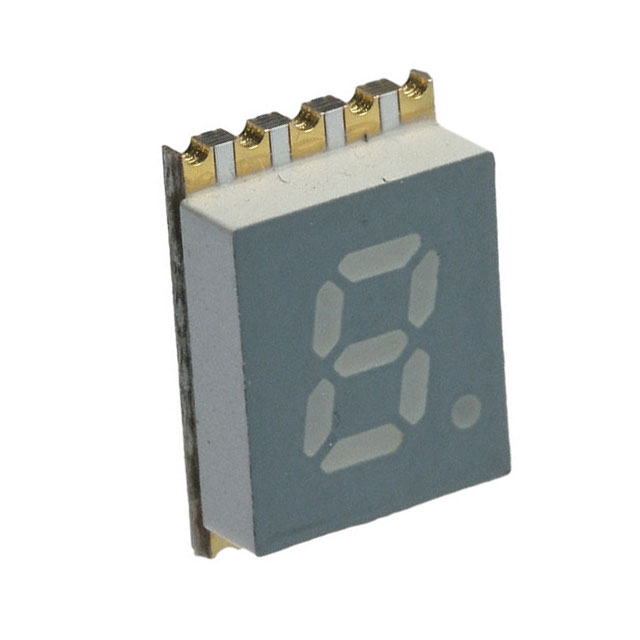

ACSA02-41SGWA-F01
ActiveKingbright
DISPLAY 7SEG 0.2" SGL GRN 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACSA02-41SGWA-F01
ActiveKingbright
DISPLAY 7SEG 0.2" SGL GRN 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACSA02-41SGWA-F01 |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 5.08 mm |
| Digit/Alpha Size | 0.2 in |
| Display Type | 7-Segment |
| Millicandela Rating | 3.9 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 62.5 mW |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [y] | 0.272 " |
| Size / Dimension [y] | 6.9 mm |
| Size / Dimension [z] | 3 mm |
| Size / Dimension [z] | 0.118 " |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.37 | |
| 10 | $ 2.24 | |||
| 100 | $ 1.73 | |||
| Digi-Reel® | 1 | $ 3.37 | ||
| 10 | $ 2.24 | |||
| 100 | $ 1.73 | |||
| Tape & Reel (TR) | 650 | $ 1.56 | ||
| 1300 | $ 1.34 | |||
| 3250 | $ 1.27 | |||
| 6500 | $ 1.24 | |||
Description
General part information
ACSA02 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) 10-SMD, No Lead
