09140153001

Active

HARTING Technology Group

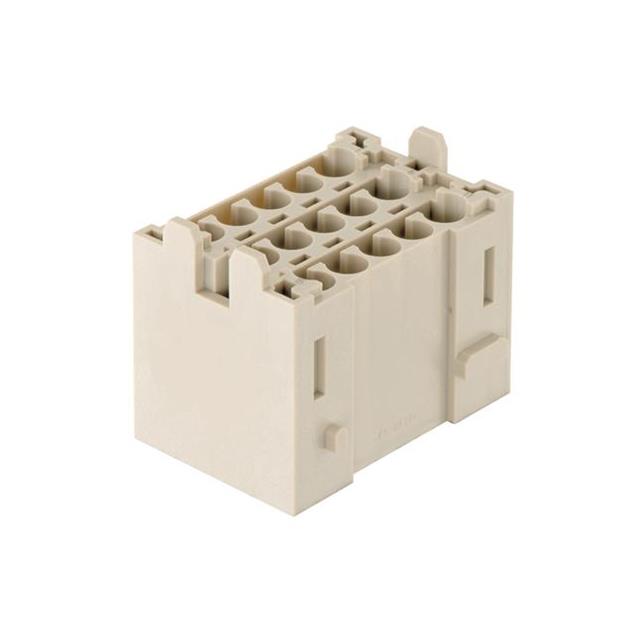

HEAVY DUTY CONNECTOR, MULTIPLIER BLOCK, HAN YELLOCK, INSERT, 15 CONTACTS, PLUG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, MULTIPLIER BLOCK, HAN YELLOCK, INSERT, 15 CONTACTS, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	09140153001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han® E
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	15
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	500 V

Part	Material Flammability Rating	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Color	Number of Positions	Housing Material	Contact Type	Gender
HARTING Technology Group 09140153101	UL94 V-0	Crimp	16 A	125 °C	-40 °C	500 V	Insert without Contacts	Gray	15	Polycarbonate (PC)	Han® E	Female
HARTING Technology Group 09140153001	UL94 V-0	Crimp	16 A	125 °C	-40 °C	500 V	Insert without Contacts	Gray	15	Polycarbonate (PC)	Han® E	Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 15 Position Crimp
