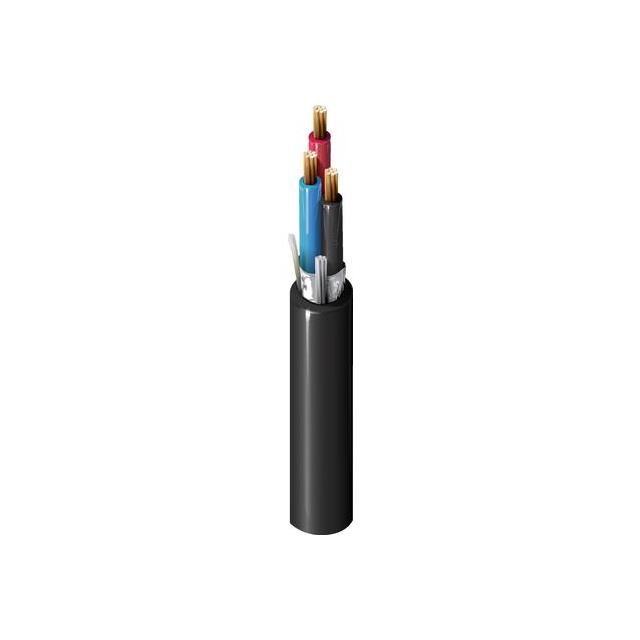

1093A 0107500

Active

Belden Inc.

CABLE 12 COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12 COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	1093A 0107500

Cable Type	Multi-Triad
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.583 in
Jacket (Insulation) Diameter [diameter]	14.81 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	7500 ft
Length [x]	2286 m
Number of Conductors	12
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

Part	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Features	Length [x]	Length [x]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Conductor Material	Shield Coverage	Number of Conductors	Conductor Insulation	Shield Material
Belden Inc. 1093A 0107500	Foil	Black	0.583 in	14.81 mm	Multi-Triad	Drain Wire Rip Cord	7500 ft	2286 m	18 AWG	26 AWG	7	Poly-Vinyl Chloride (PVC)	Copper Bare	100 %	12	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	7500	$ 5.45

General part information

12 (4 Triad Twisted) Conductor Multi-Triad Cable Black 18 AWG Foil 7500' (2286.0m)
