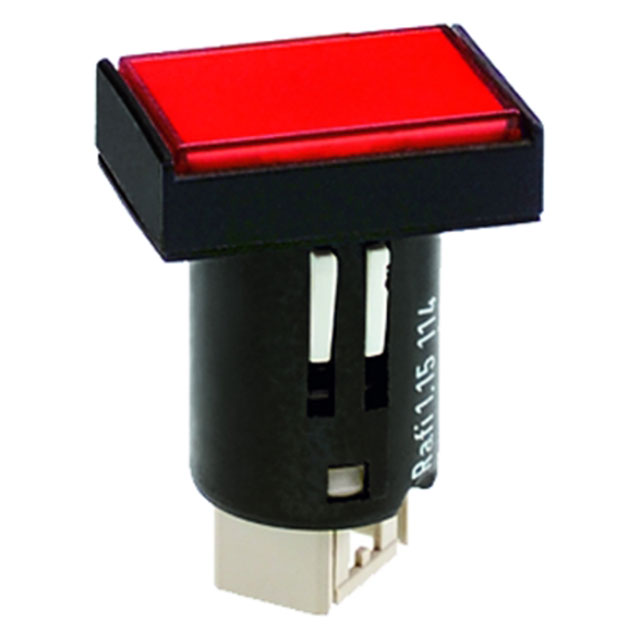

1.15114.9660000

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 0.1A 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSH SPST-NO 0.1A 35V

Technical Specifications

Parameters and characteristics for this part

Specification	1.15114.9660000

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPST-NO
Current Rating (Amps)	100 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.1 mm
Switch Function	Off-Mom
Termination Style	Connector
Type	Illuminated, Standard
Voltage Rating - DC	35 V

Part	Type	Switch Function	Mounting Type	Circuit	Ingress Protection	Actuator Type	Termination Style	Mechanical Life	Panel Cutout Dimensions [diameter]	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - DC	Color - Actuator/Cap	Voltage Rating - AC
RAFI USA 1.15114.9660000	Illuminated Standard	Off-Mom	Panel Mount Front	SPST-NO	IP65 - Dust Tight Water Resistant	Rectangular Button	Connector	1000000 Cycles	16.1 mm	No Marking	70 °C	-25 °C	100 mA	35 V
RAFI USA 1.15114.0061002	Illuminated Standard	Off-Mom	Panel Mount Front	SPST-NO	IP65 - Dust Tight Water Resistant	Button Square	Connector		16.1 mm	No Marking	70 °C	-25 °C	100 mA	42 V	Clear	42 V
RAFI USA 1.15114.9360000	Illuminated Standard	Off-Mom	Panel Mount Front	SPST-NO	IP65 - Dust Tight Water Resistant	Button Round	Connector	1000000 Cycles	16.1 mm	No Marking	70 °C	-25 °C	100 mA	35 V
RAFI USA 1.15114.9060000	Illuminated Standard	Off-Mom	Panel Mount Front	SPST-NO	IP65 - Dust Tight Water Resistant	Button Square	Connector	1000000 Cycles	16.1 mm	No Marking	70 °C	-25 °C	100 mA	35 V
RAFI USA 1.15114.0061505	Illuminated Standard	Off-Mom	Panel Mount Front	SPST-NO	IP65 - Dust Tight Water Resistant	Button Square	Connector		16.1 mm	No Marking	70 °C	-25 °C	100 mA	42 V	Clear	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
