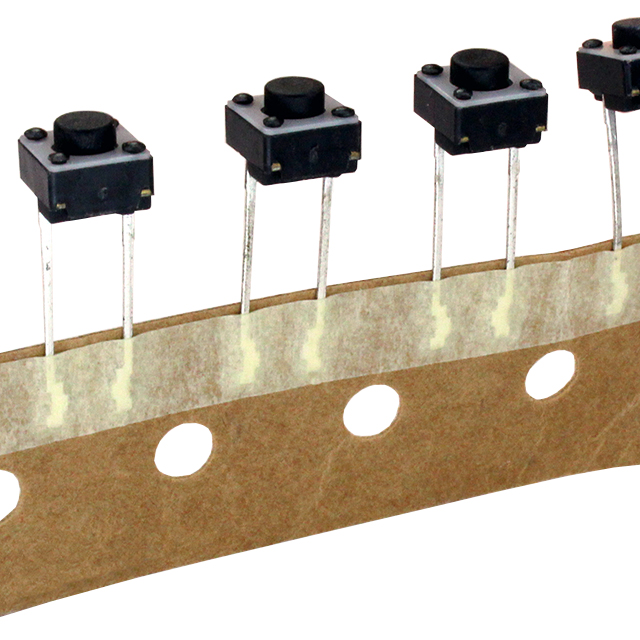

CR1102H5.0F160

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CR1102H5.0F160

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CR1102H5.0F160

Actuator Height off PCB, Vertical	5 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

CR1102H Series

Part	Actuator Material	Switch Travel	Outline [y]	Outline [x]	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Mounting Type	Actuator Orientation	Operating Force	Switch Function	Actuator Type	Actuator Height off PCB, Vertical	Illumination	Actuator Height off PCB, Vertical [z]
CIT Relay and Switch CR1102H9.5F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated	260 gf	Off-Mom	Standard	9.5 mm	Non-Illuminated
CIT Relay and Switch CR1102H7.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated	100 gf	Off-Mom	Standard		Non-Illuminated	7 mm
CIT Relay and Switch CR1102H9.5F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated	100 gf	Off-Mom	Standard	9.5 mm	Non-Illuminated
CIT Relay and Switch CR1102H5.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated	100 gf	Off-Mom	Standard	5 mm	Non-Illuminated
CIT Relay and Switch CR1102H7.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated		Off-Mom	Standard		Non-Illuminated	7 mm
CIT Relay and Switch CR1102H4.3F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated	100 gf	Off-Mom	Standard		Non-Illuminated	4.3 mm
CIT Relay and Switch CR1102H9.5F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated		Off-Mom	Standard	9.5 mm	Non-Illuminated
CIT Relay and Switch CR1102H5.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated		Off-Mom	Standard	5 mm	Non-Illuminated
CIT Relay and Switch CR1102H7.3F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated	260 gf	Off-Mom	Standard		Non-Illuminated	7.3 mm
CIT Relay and Switch CR1102H7.3F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	6.2 mm	6.2 mm	0.05 A 50 VDC	85 °C	-40 °C	PC Pin	SPST-NO	Through Hole	Top Actuated		Off-Mom	Standard		Non-Illuminated	7.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.15
		10	$ 0.15
		25	$ 0.14
		100	$ 0.13
		250	$ 0.12
		500	$ 0.11
	Tape & Box (TB)	1000	$ 0.09
		3000	$ 0.09
		5000	$ 0.08
		10000	$ 0.08

Description

General part information

CR1102H Series

Tactile Switch SPST-NO Top Actuated Through Hole
