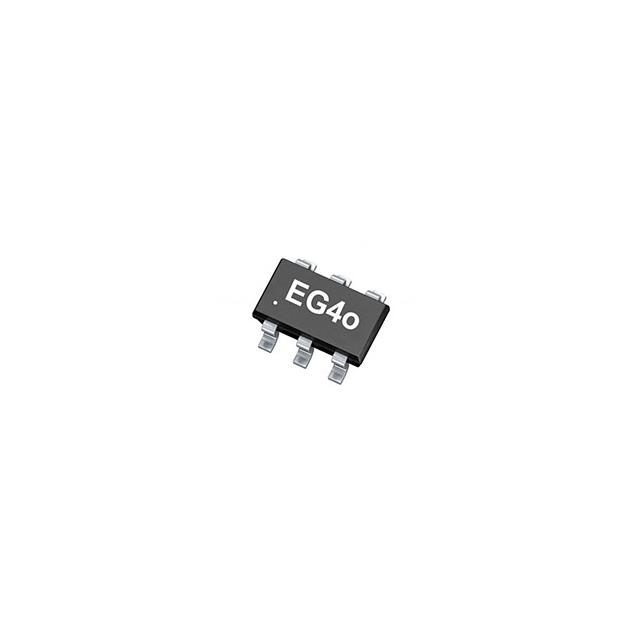

ATDC2934
ActiveAnalog Technologies, Inc.
IC REG BUCK ADJ 600MA SOT23-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATDC2934
ActiveAnalog Technologies, Inc.
IC REG BUCK ADJ 600MA SOT23-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATDC2934 |
|---|---|
| Current - Output | 600 mA |
| Frequency - Switching | 1.2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 42 V |
| Voltage - Input (Min) [Min] | 5 V |
| Voltage - Output (Max) [Max] | 20 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 5.35 | |
| 10 | $ 4.81 | |||
| 25 | $ 4.54 | |||
| 100 | $ 3.94 | |||
| 250 | $ 3.74 | |||
| 500 | $ 3.35 | |||
| 1000 | $ 2.83 | |||
| 2500 | $ 2.69 | |||
Description
General part information
ATDC2934 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 600mA SOT-23-6
