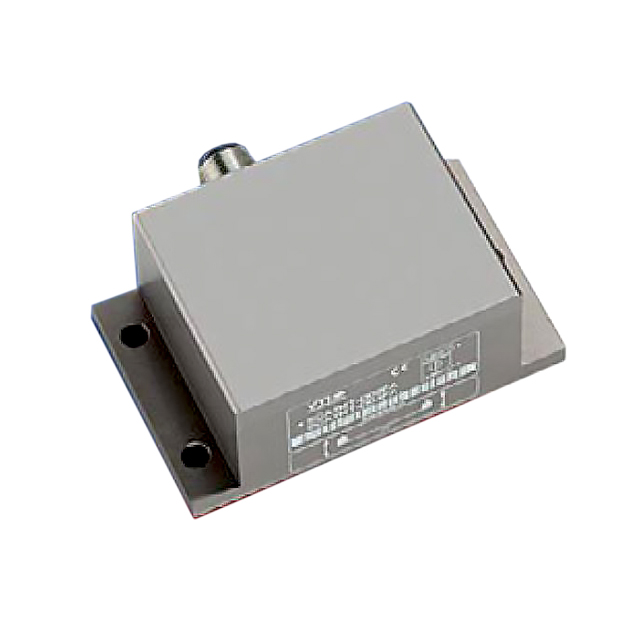

SCA124T-D02FA
ObsoleteMurata Power Solutions Inc.
SENSOR INCLINOMETER 30DEG MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCA124T-D02FA
ObsoleteMurata Power Solutions Inc.
SENSOR INCLINOMETER 30DEG MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCA124T-D02FA |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Bandwidth | 1 Hz |
| Interface | Analog |
| Measuring Range [Max] | 30 ° |
| Measuring Range [Min] | -30 ° |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Current |
| Package / Case | Module |
| Sensitivity | 8 mA/FS |
| Voltage Rating [Max] | 36 V |
| Voltage Rating [Min] | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SCA124T Series
Sensor Inclinometer ±30° X, Y Axis 1Hz Bandwidth Module
