DS2045Y-100#

Obsolete

Analog Devices Inc./Maxim Integrated

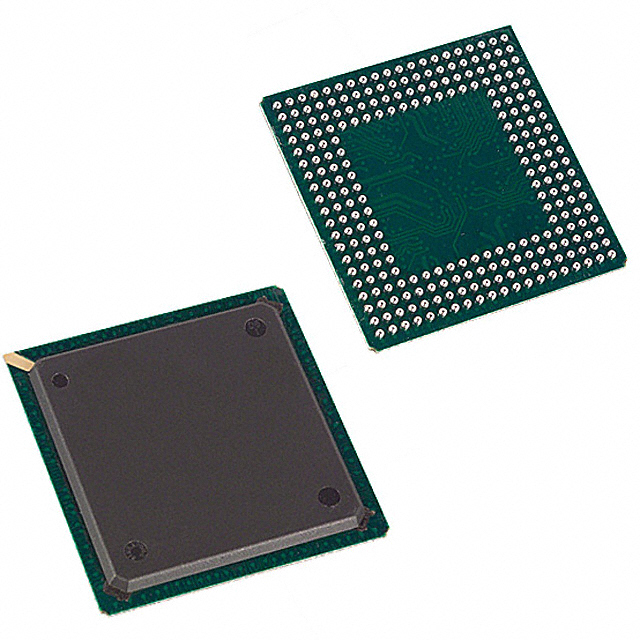

IC NVSRAM 1MBIT PARALLEL 256BGA

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC NVSRAM 1MBIT PARALLEL 256BGA

Technical Specifications

Parameters and characteristics for this part

Specification	DS2045Y-100#

Access Time	100 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	128K x 8
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	256-BGA
Supplier Device Package	256-BGA (27x27)
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V
Write Cycle Time - Word, Page [custom]	100 ns
Write Cycle Time - Word, Page [custom]	100 ns

Part	Supplier Device Package	Access Time	Mounting Type	Memory Format	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Type	Memory Size	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Package / Case	Technology
Analog Devices Inc./Maxim Integrated DS2045AB-100#	256-BGA (27x27)	100 ns	Surface Mount	NVSRAM	100 ns	100 ns	4.75 V	5.25 V	Non-Volatile	1 Mbit	Parallel	85 °C	-40 °C	128K x 8	256-BGA	NVSRAM (Non-Volatile SRAM)
Analog Devices Inc./Maxim Integrated DS2045L-100#	256-BGA (27x27)	100 ns	Surface Mount	NVSRAM	100 ns	100 ns	3 V	3.6 V	Non-Volatile	1 Mbit	Parallel	85 °C	-40 °C	128K x 8	256-BGA	NVSRAM (Non-Volatile SRAM)
Analog Devices Inc./Maxim Integrated DS2045W-100#	256-BGA (27x27)	100 ns	Surface Mount	NVSRAM	100 ns	100 ns	3 V	3.6 V	Non-Volatile	1 Mbit	Parallel	85 °C	-40 °C	128K x 8	256-BGA	NVSRAM (Non-Volatile SRAM)
Analog Devices Inc./Maxim Integrated DS2045AB-70#	256-BGA (27x27)	70 ns	Surface Mount	NVSRAM			4.75 V	5.25 V	Non-Volatile	1 Mbit	Parallel	85 °C	-40 °C	128K x 8	256-BGA	NVSRAM (Non-Volatile SRAM)
Analog Devices Inc./Maxim Integrated DS2045Y-100#	256-BGA (27x27)	100 ns	Surface Mount	NVSRAM	100 ns	100 ns	4.5 V	5.5 V	Non-Volatile	1 Mbit	Parallel	85 °C	-40 °C	128K x 8	256-BGA	NVSRAM (Non-Volatile SRAM)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	9	$ 34.09

General part information

NVSRAM (Non-Volatile SRAM) Memory IC 1Mbit Parallel 100 ns 256-BGA (27x27)
