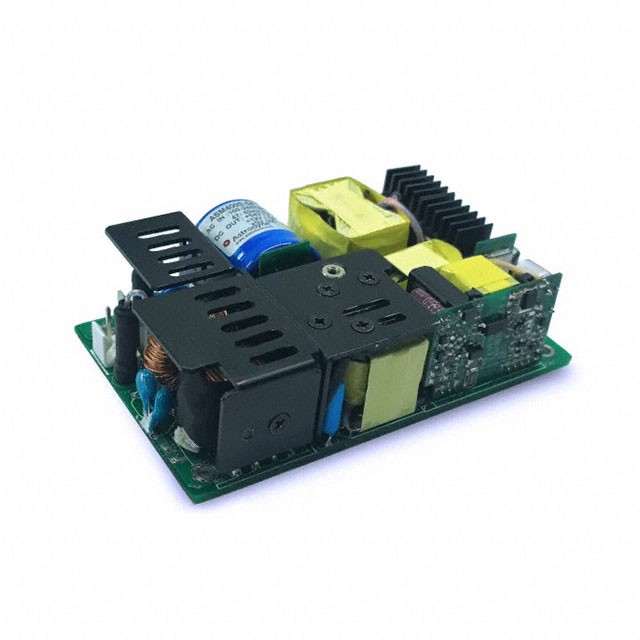

BSM400S-15

Active

Astrodyne TDI

AC/DC CONVERTER 15V 200W

Search across all available documentation for this part.

Active

Astrodyne TDI

AC/DC CONVERTER 15V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	BSM400S-15

Applications	Medical
Approval Agency	CE, cURus, UL, CB
Current - Output 1	13.3 A
Efficiency	90 %
Features	Universal Input, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	401 W
Power (Watts)	200 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	33.5 mm
Size / Dimension [z]	1.32 in
Standard Number	60601-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	15 V

Part	Features	Voltage - Isolation	Type	Approval Agency	Voltage - Output 1	Mounting Type	Current - Output 1	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Power (Watts)	Power (Watts)	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Standard Number
Astrodyne TDI BSM400S-15	Standby Output Universal Input	4000 V	Open Frame	CB CE cURus UL	15 V	Chassis Mount	13.3 A	90 %	90 VAC	264 VAC	1	401 W	200 W		-20 °C	40 °C	3 "	33.5 mm	5 in	127 mm	1.32 in	76.2 mm	Medical	60601-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
