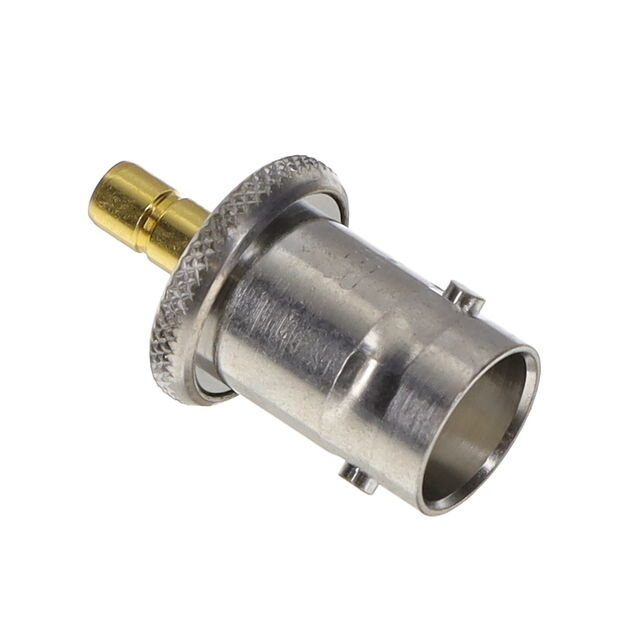

31_BNC-SMB-50-2/1--_UE

Active

Huber+Suhner, Inc.

COAX ADAPT BNC TO SMB

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

COAX ADAPT BNC TO SMB

Technical Specifications

Parameters and characteristics for this part

Specification	31_BNC-SMB-50-2/1--_UE

Adapter Type	Jack to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMB Jack
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On, Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Adapter Type	Convert To (Adapter End)	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Fastening Type	Body Material	Style	Conversion Type	Dielectric Material	Mating Cycles	Mounting Type	Center Contact Plating	Convert From (Adapter End)	Impedance
Huber+Suhner, Inc. 31_BNC-SMB-50-2/1--_UE	4 GHz	Jack to Jack	Female Socket SMB Jack	Female to Female	-65 ░C	165 °C	Beryllium Copper	Bayonet Lock Snap-On	Brass	Straight	Between Series	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	Gold	BNC Jack Female Socket	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To SMB Jack, Female Socket 50 Ohms
