PX0748/S

Active

BULGIN LIMITED

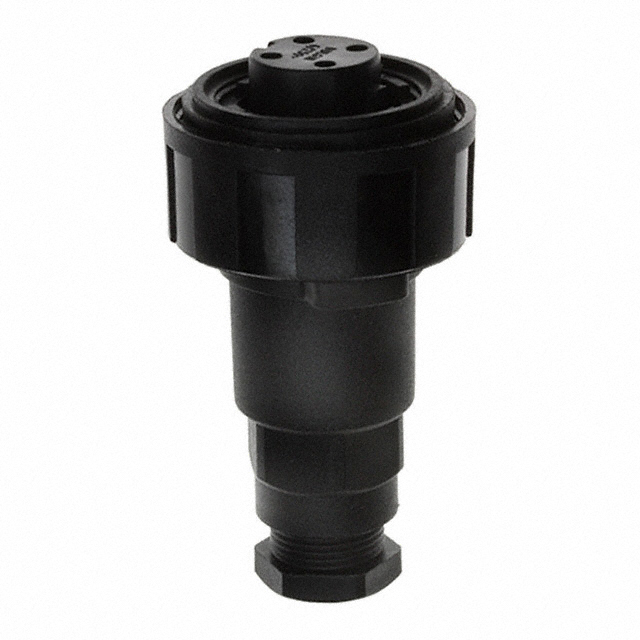

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, SCREW SOCKET

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, SCREW SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	PX0748/S

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	6 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

Part	Connector Type	Ingress Protection	Features	Shell Material	Mounting Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Contact Finish - Mating	Color	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Shielding	Material Flammability Rating	Voltage Rating	Orientation	Contact Material	Termination	Insert Material	Primary Material
BULGIN LIMITED PX0748/P	Male Pins Plug	IP68 IP69K	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	8 mm	6 mm	0.315 in	0.236 in	Nickel	Black	6 A	4	-20 C	70 °C	Glass Filled Nylon Polyamide (PA)	Unshielded	UL94 HB	277 VAC/DC	Keyed	Brass	Screw	Nylon Polyamide (PA)	Plastic
BULGIN LIMITED PX0748/S	Female Sockets Plug	IP68 IP69K	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)	8 mm	6 mm	0.315 in	0.236 in	Nickel	Black	6 A	4	-20 C	70 °C	Glass Filled Nylon Polyamide (PA)	Unshielded	UL94 HB	277 VAC/DC	Keyed	Brass	Screw	Nylon Polyamide (PA)	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Plug, Female Sockets Screw
