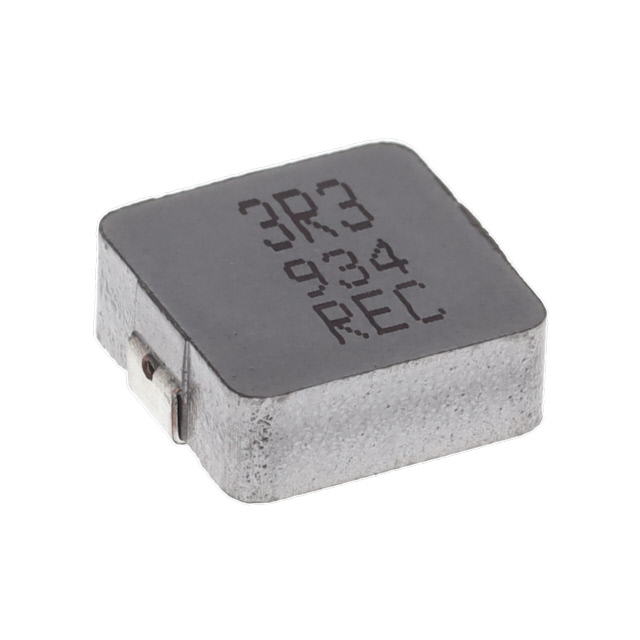

CMLS104T-3R3MS

Active

Delta Electronics/Cyntec

FIXED IND 3.3UH 10.7A 11.8 MOHM

Deep-Dive with AI

Search across all available documentation for this part.

CMLS104T-3R3MS

Active

Delta Electronics/Cyntec

FIXED IND 3.3UH 10.7A 11.8 MOHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMLS104T-3R3MS

Current - Saturation (Isat)	21 A
Current Rating (Amps)	10.7 A
DC Resistance (DCR) [Max]	11.8 mOhm
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	3.3 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.427 "
Size / Dimension [x]	10.85 mm
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	20 %

CMLS104T Series

Part	Inductance	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Tolerance	Shielding	DC Resistance (DCR) [Max]	Current Rating (Amps)	Material - Core	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)
Delta Electronics/Cyntec CMLS104T-R22MS	220 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	0.95 mOhm	40 A	Metal	75 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-R15MS	150 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded		52 A	Metal	90 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C	0.65 mOhm
Delta Electronics/Cyntec CMLS104T-4R7MS	4.7 ÁH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	16.5 mOhm	9.6 A	Metal	17 A	0.427 "	10.85 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-1R5MS	1.5 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	4.2 mOhm	16 A	Metal	33 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-R36MS	360 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded		30 A	Metal	60 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C	1.25 mOhm
Delta Electronics/Cyntec CMLS104T-R56MS	560 nH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	1.8 mOhm	25 A	Metal	40 A	0.439 in	11.15 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-3R3MS	3.3 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded	11.8 mOhm	10.7 A	Metal	21 A	0.427 "	10.85 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C
Delta Electronics/Cyntec CMLS104T-2R2MS	2.2 µH	100 kHz	0.157 in	4 mm	Nonstandard	20 %	Shielded		12.5 Amps	Metal	23 A	0.427 "	10.85 mm	0.394 in	10 mm	Surface Mount	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.32
		10	$ 1.08
		25	$ 1.10
		50	$ 1.02
		100	$ 0.89
		250	$ 0.85
	Digi-Reel®	1	$ 1.32
		10	$ 1.08
		25	$ 1.10
		50	$ 1.02
		100	$ 0.89
		250	$ 0.85
	Tape & Reel (TR)	500	$ 0.78
		1000	$ 0.73
		1500	$ 0.71
		2500	$ 0.68
		3500	$ 0.66
		5000	$ 0.64
		12500	$ 0.64

Description

General part information

CMLS104T Series

3.3 µH Shielded Inductor 10.7 A 11.8mOhm Max Nonstandard
