2ED2744S01GXTMA1

Active

Infineon Technologies

THE 2ED2744S01G IS A 160 V HIGH SIDE, LOW SIDE SOI GATE DRIVER WITH TYPICAL 2 A SOURCE AND 4 A SINK CURRENTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2ED2744S01GXTMA1

Active

Infineon Technologies

THE 2ED2744S01G IS A 160 V HIGH SIDE, LOW SIDE SOI GATE DRIVER WITH TYPICAL 2 A SOURCE AND 4 A SINK CURRENTS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2ED2744S01GXTMA1

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	2 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	160 V
Input Type	Non-Inverting
Logic Voltage - VIL, VIH	0.8 V, 2 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

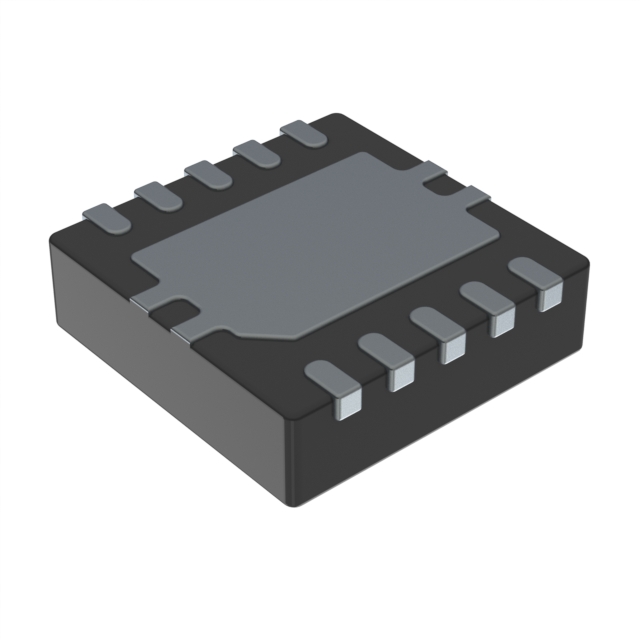

Package / Case	10-VFDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	24 ns
Rise / Fall Time (Typ) [custom]	12 ns
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	7 V

2ED2744 Series

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Input Type	Package / Case	Number of Drivers	High Side Voltage - Max (Bootstrap) [Max]	Driven Configuration	Channel Type	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Logic Voltage - VIL, VIH
Infineon Technologies 2ED2744S01GXTMA1	24 ns	12 ns	-40 °C	125 °C	Surface Mount	Non-Inverting	10-VFDFN Exposed Pad	2	160 V	Half-Bridge	Independent	N-Channel MOSFET	4 A	2 A	18 V	7 V	0.8 V 2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.36
		10	$ 2.20
		25	$ 1.89
		100	$ 1.55
		250	$ 1.38
		500	$ 1.28
		1000	$ 1.20
	Digi-Reel®	1	$ 3.36
		10	$ 2.20
		25	$ 1.89
		100	$ 1.55
		250	$ 1.38
		500	$ 1.28
		1000	$ 1.20
	Tape & Reel (TR)	3000	$ 1.09
		6000	$ 1.04
		9000	$ 1.01

Description

General part information

2ED2744 Series

MOTIX™ 160 V half bridgeSOI based gate driverwith typical 2 A source and 4 A sink currents in a small footprint VSON10, 3x3 mm package for N-ChannelMOSFETS. Integrated bootstrap diodes are used to supply the external high side bootstrap capacitor. Protection features include under voltage lockout on both Vccand VBpins. The 2ED2744 is fully qualified for industrial applications according to the relevant tests of JEDEC78/20/22.
